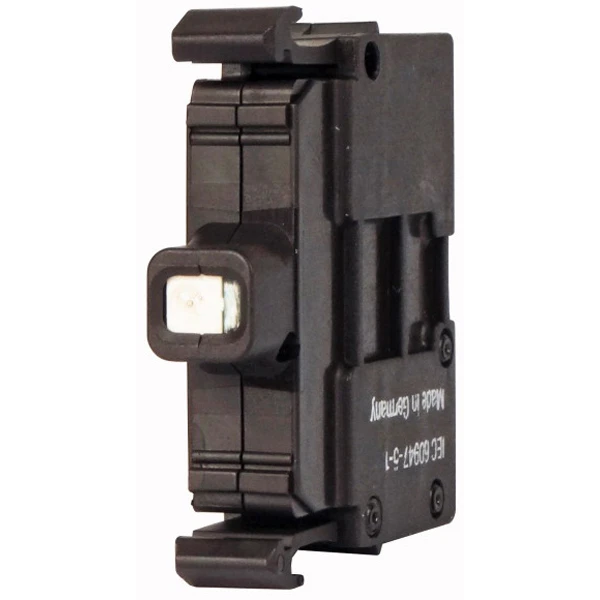

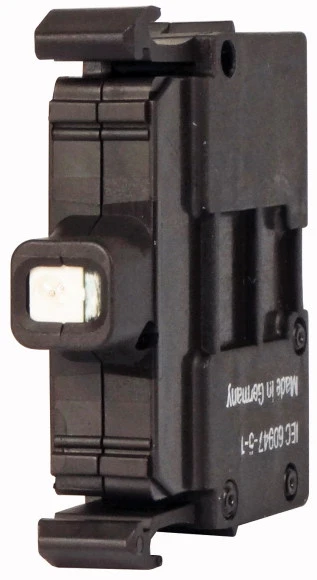

Element LED Front Fixing Screw Term 85-264V Ac 5-15Ma Blu
Element LED Front Fixing Screw Term 85-264V Ac 5-15Ma Blu
Element LED Front Fixing Screw Term 85-264V Ac 5-15Ma Blu - Image 2
Element LED Front Fixing Screw Term 85-264V Ac 5-15Ma Blu - Image 3
Element LED Front Fixing Screw Term 85-264V Ac 5-15Ma Blu - Image 4

Element LED Front Fixing Screw Term 85-264V Ac 5-15Ma Blu

£15.31 Incl. VAT

LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 85 – 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 – 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1 · · · Colour: Blue · · Cutout Size: 22.5mm · · IP Rating: IP20 · · Voltage: 85 – 264V AC

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: M22-LED230-B Categories: , , Brand: Part Number: 2500088658

Description

Technical Specifications  Technical Specifications Lamp holder block for control circuit devices Type of fastening Front fastening Lamp cap/base None Colour lamp Blue Light source type LED Connection type auxiliary circuit Screw connection Voltage type for actuating AC Rated voltage Ue at AC 50 Hz 85 – 264 V Rated voltage Ue at AC 60 Hz 85 – 264 V Rated voltage Ue at DC 0 – 0 V Light source included Yes Transformer integrated No With integrated voltage decreasing resistor No With integrated diode Yes · Technical Data Sheet – Click to Download
