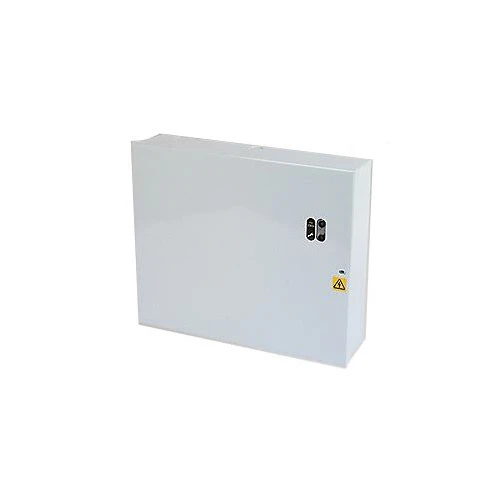

Elmdene BM Power Supply 0.5A 12V Battery
£84.90 Incl. VAT
Elmdene BM Power Supply is ideal for general purpose applications that require battery monitoring and volt-free fault output for remote signalling of fault conditions. These units may be used for systems where compliance with EN54-4 is not required. FOM 4 or 8 can be fitted to give independent fused outputs. See page 49 for more information. · · · Full rated current to load includes 0.5A battery charging · · Electronic overload protection · · LED indication · · Mains transient protection · · Screen printing available
Out of Stock
Description
Technical Specifications Technical Specifications AC/DC-power supply Width 330 mm Height 275 mm Depth 80 mm Max. output current 1 0.5 A Rated supply voltage at AC 50 Hz 230 – 230 V 1st secondary output voltage at DC 27.6 – 27.6 V Modular version No Short-circuit-proof Yes Output voltage stabilized No Secondary voltage adjustable No
