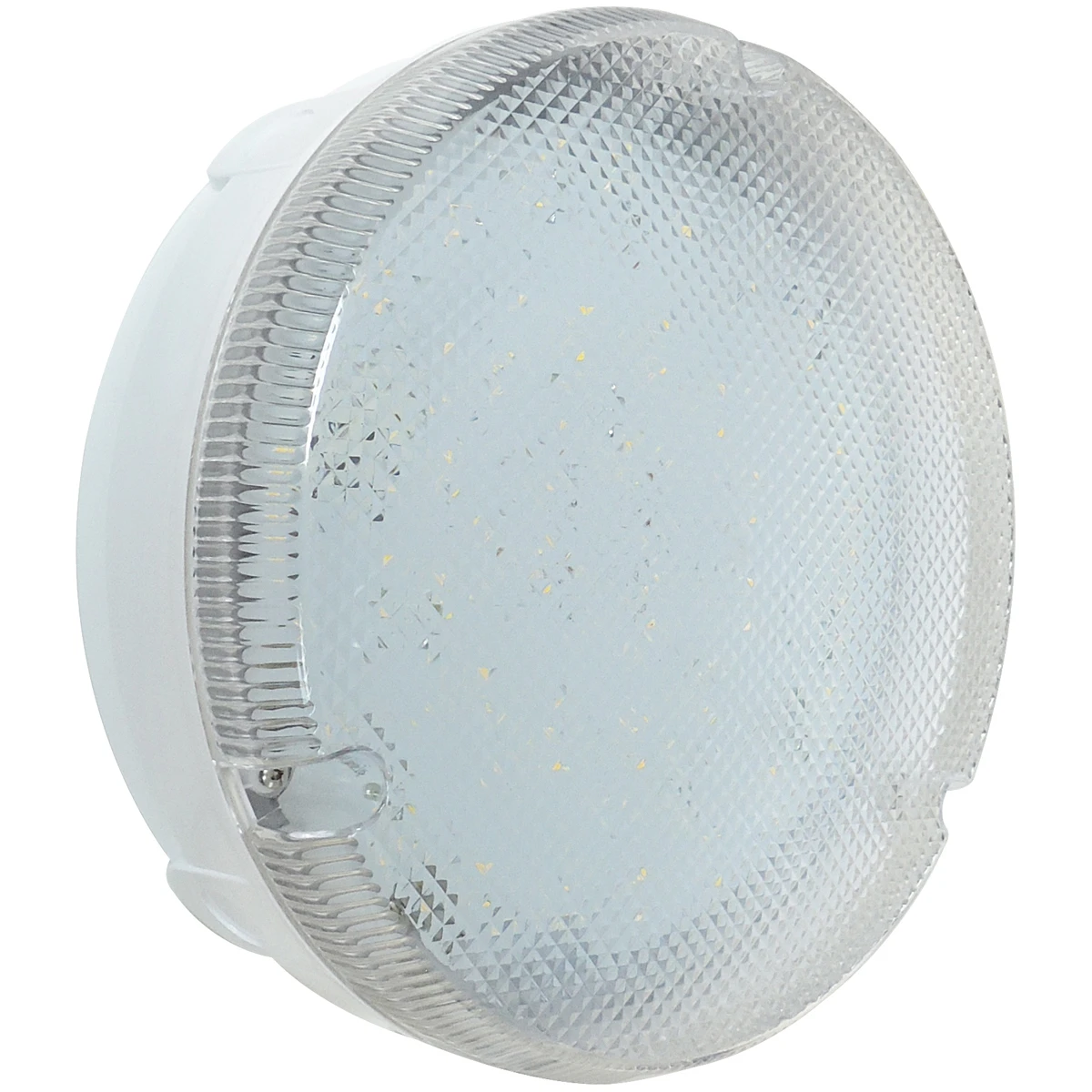

Emergency + Multi-Function Microwave Sensor Fresh Prince Cicular LED Utility Fitting with Prismatic Diffuser

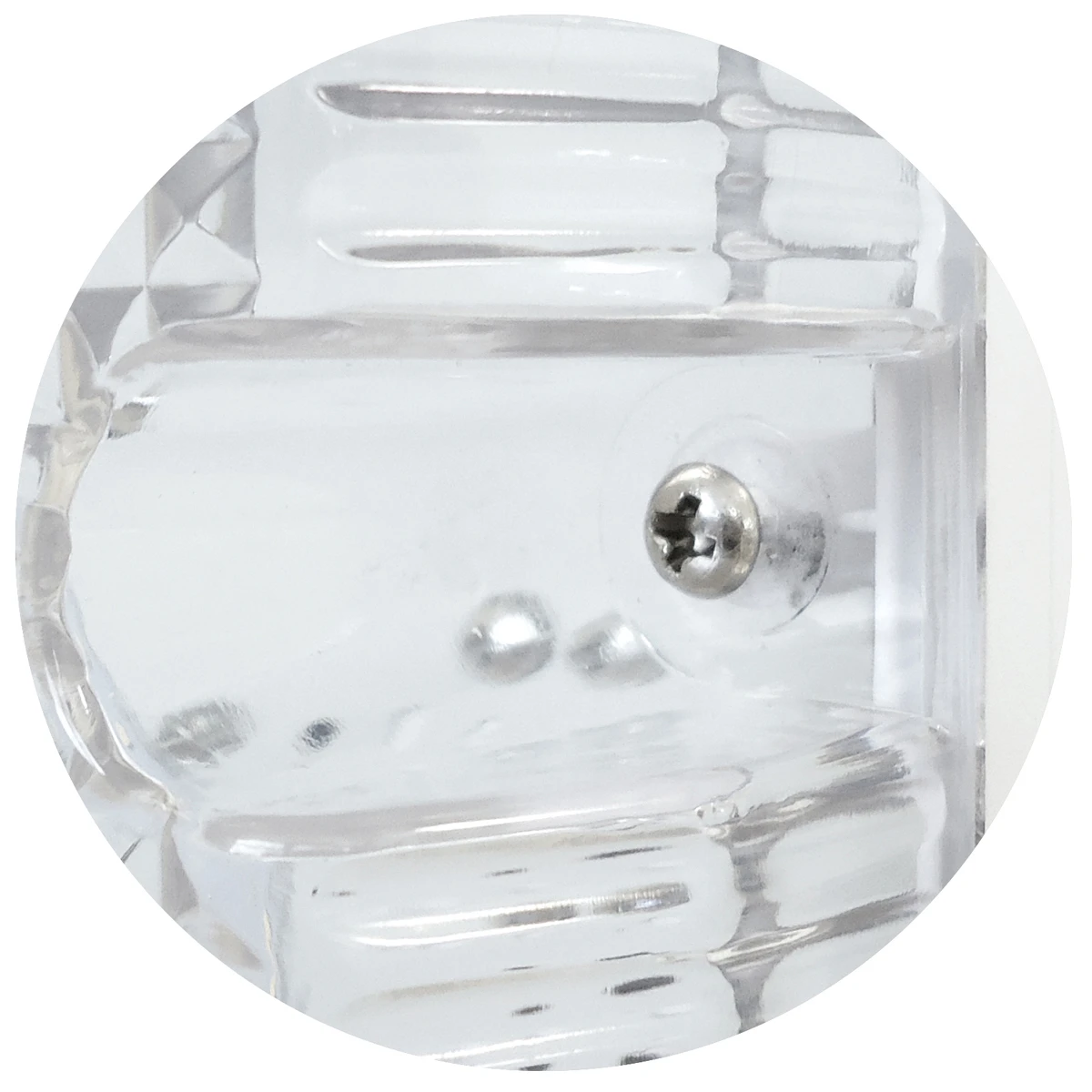

Emergency Circular LED Utility Fitting with multi-function microwave and prismatic diffuser · · · circle, prismatic, ceiling wall light, IP65, multi-function microwave sensor, emergency · · Hinged gear tray: Four 20mm cable entries on the side and one to the rear · · Full circular LED array · · Captive fixing screws · · Detection sensitivity adjustable – 10/50/75/100%: Daylight sensor adjustable – 5/15/50 Lux/ Disable · · Mounting height – maximum 6mtr: Detection zone – maximum 16mtr diameter x 6mtr height · · Detection angle – 150 degrees (wall mounted), 360 degrees (ceiling mounted): Multi-function microwave sensor with 3 installer options: • Standard On/Off Mode: Operation at 100% light level then off after last presence detection. Operation on time can be set at 5 seconds/90 seconds/3minutes/10minutes • “Corridor Mode”: Operation at 100% light level after last presence detection which can be set at 5 seconds/90 seconds/3minutes/10minutes, then continuous operation at 10% light level • “Corridor” & · · 3 hour maintained mode as standard which can also be configured for non maintained operation
