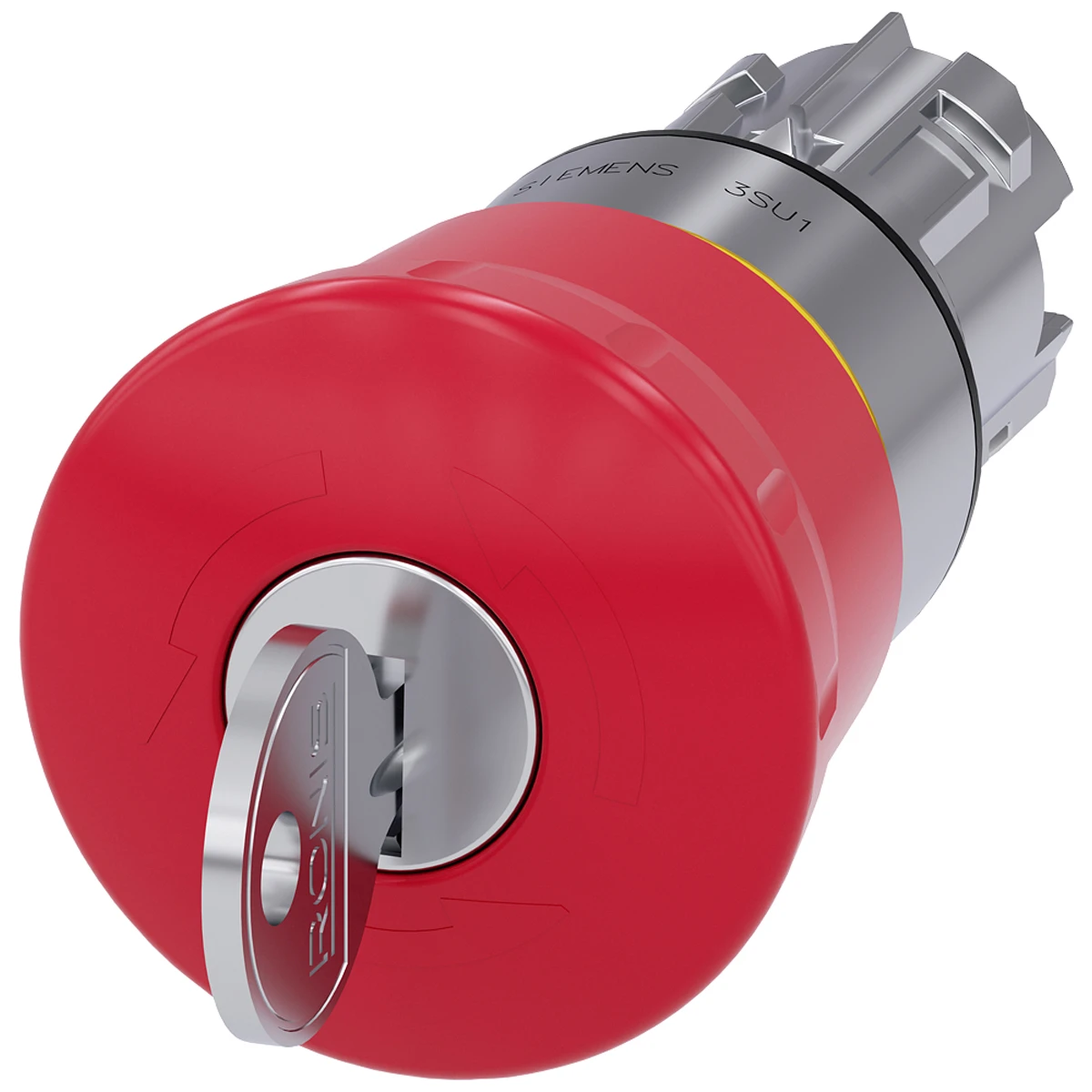

Siemens Emergency Stop Mushroom Push Button 22mm
£54.60 Incl. VAT
Siemens standard round RONIS key-operated mushroom pushbutton for emergency stop function made up of a plastic actuator. The mounting diameter is 22.3mm whereas the actuating element has a 40mm diameter. · · · Manner of function: Latching · · Switch position for key distraction: O · · Number of switching positions: 2 · · Positive opening · · Mechanical sevice life: 300000 cycles · · Maximum operating frequency: 600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C
Description
Technical Specifications Technical Specifications Front element for mushroom push-button Construction type lens Round Unlocking method Key-release Colour button Red Type of button High Height opening 67.1 mm Diameter cap 40 mm Hole diameter 22.3 mm Width opening 40 mm Suitable for emergency stop Yes Suitable for illumination No With front ring No Spring-return No Switching function latching No · Technical Data Sheet – Click to Download
