Siemens Emergency Stop Mushroom Push Button 22mm
Siemens Emergency Stop Mushroom Push Button 22mm
Siemens Emergency Stop Mushroom Push Button 22mm - Image 2
Siemens Emergency Stop Mushroom Push Button 22mm - Image 3

Siemens Emergency Stop Mushroom Push Button 22mm

£87.38 Incl. VAT

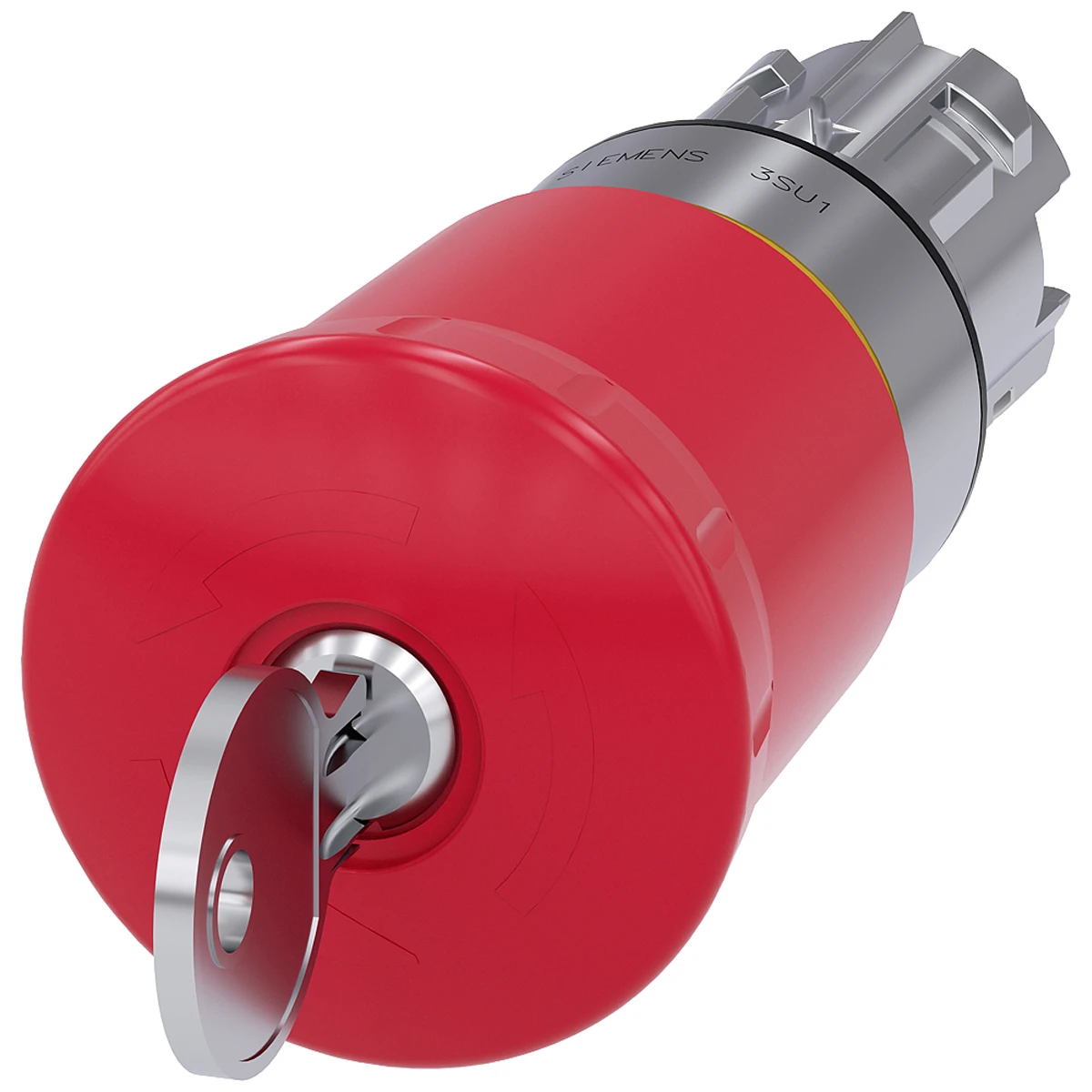

Siemens standard round CES key-operated mushroom pushbutton for emergency stop function made up of a plastic actuator. The mounting diameter is 22.3mm whereas the actuating element has a 40mm diameter. · · · Manner of function: Latching · · Switch position for key distraction: O · · Number of switching positions: 2 · · Positive opening · · Mechanical sevice life: 300000 cycles · · Maximum operating frequency: 600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1050-1HR20-0AA0 Brand: Product Code: 1051118346

Description

Technical Specifications  Technical Specifications Front element for mushroom push-button Construction type lens Round Unlocking method Key-release Colour button Red Height opening 84.5 mm Diameter cap 40 mm Width opening 40 mm Hole diameter 22.3 mm Spring-return No Suitable for illumination No With front ring No Suitable for emergency stop Yes Switching function latching No · Technical Data Sheet – Click to Download
