Siemens Emergency Stop Mushroom Push Button 22mm

£26.08 Incl. VAT

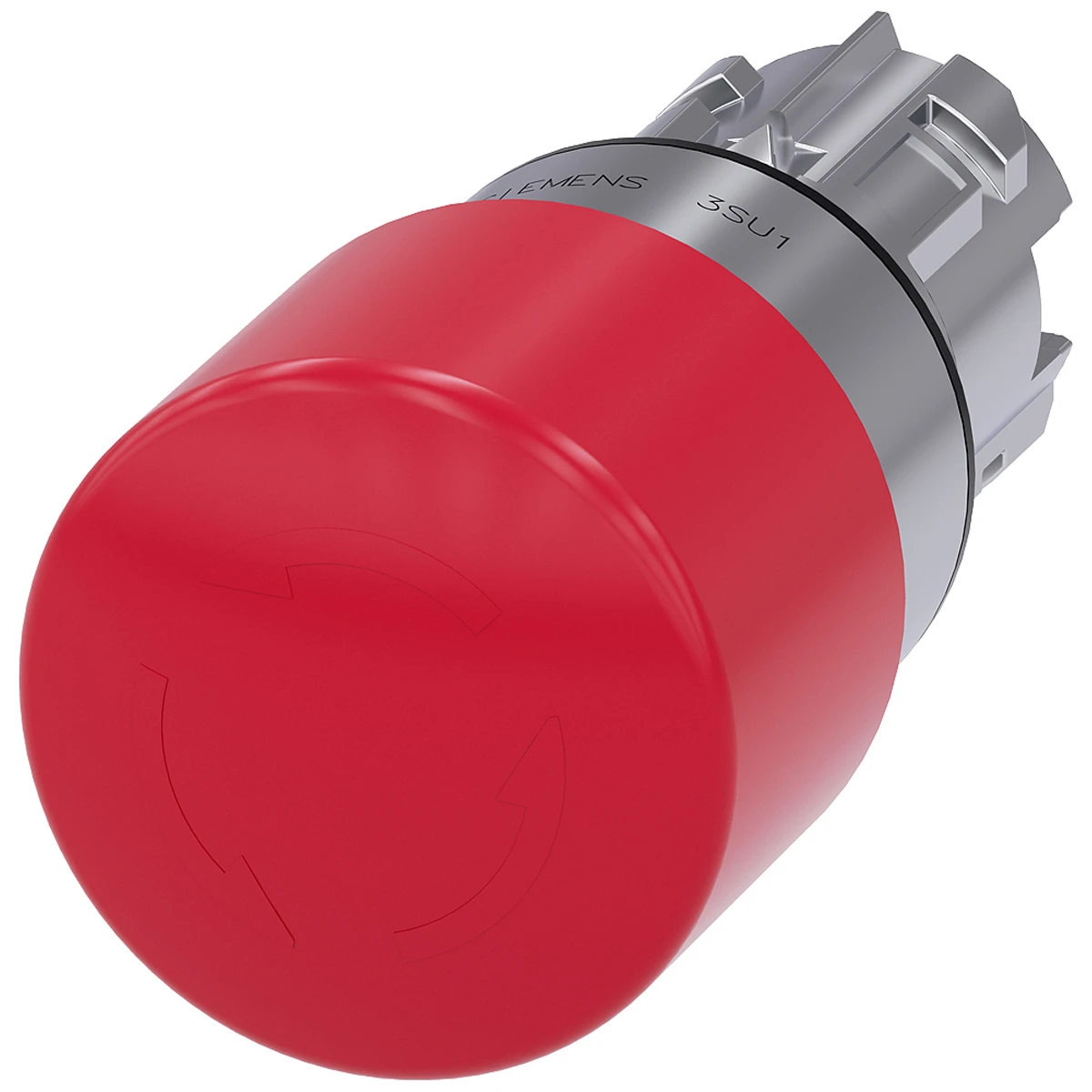

Siemens standard round mushroom pushbutton for emergency stop function made up of a plastic actuator. The mounting diameter is 22.3mm whereas the actuating element has a 33.8mm diameter. · · · Manner of function: Momentary contact type · · Type of unlocking device: Rotate-to-unlatch mechanism · · Number of switching positions: 2 · · Mechanical sevice life: 300000 cycles · · Maximum operating frequency: 600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1050-1GB20-0AA0 Brand: Product Code: 1051118340

Description

Technical Specifications  Technical Specifications Front element for mushroom push-button Material front ring Plastic Unlocking method Turn-release Construction type lens Round Colour button Red Width opening 33.8 mm Diameter cap 33.8 mm Hole diameter 22.3 mm Suitable for illumination No Height opening 44.2 mm Spring-return No Suitable for emergency stop Yes Switching function latching No With front ring No · Technical Data Sheet – Click to Download
