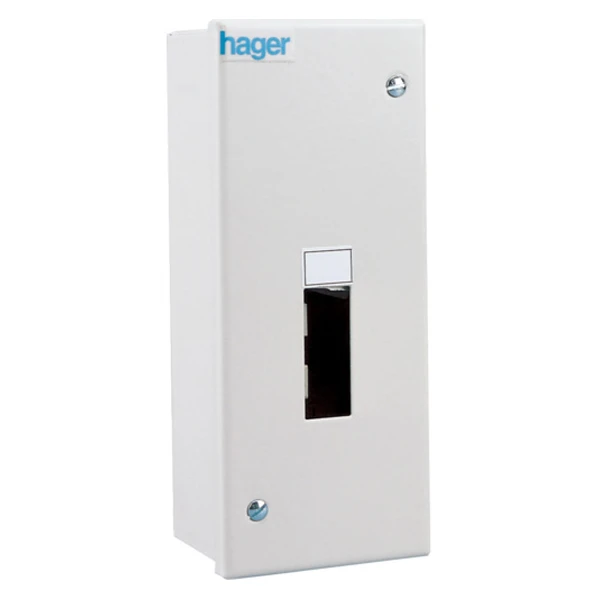

Hager Enclosure 1 Row 4 Extended Height Steel IP31
Hager Enclosure 1 Row 4 Extended Height Steel IP31
Hager Enclosure 1 Row 4 Extended Height Steel IP31 - Image 2

Hager Enclosure 1 Row 4 Extended Height Steel IP31

£80.22 Incl. VAT

Hager DIN Rail Enclosure supplied without a door, where larger cables need to be accommodated for switch disconnectors etc. extra cabling space is provided in the extended height versions. It is fitted with an earth bar as standard and the catch can be replaced with the optional key locking facility. · · · 4 Modules · · Without Door · · Ideally suited for the installation of individual modular devices. (RCCBs, MCBs, RCBOs, switch disconnectors etc) · · Fitted with an earth bar as standard · · Knockouts 2 x 25mm · · IP31 · · 35mm2 maximum cable capacity

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: IU44 Categories: , , Brand: Product Code: 2500009303

Description

Technical Specifications  Technical Specifications Empty cabinet Colour Grey Type of door Single Type of covering Door Housing material Steel Mounting method Surface mounted Cover model With notch Width 125 mm Degree of protection (IP rating) IP30 Depth 73.5 mm Height 312 mm Number of modules 4 Number of rows 1 · Technical Data Sheet – Click to Download
