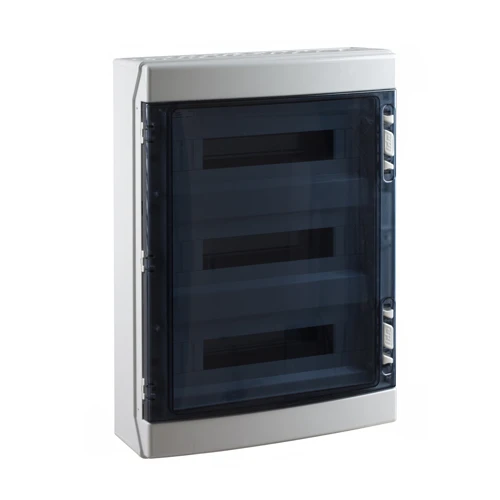

IDE Enclosure Distribution 54 Module PC Window 586X418X148mm RAL 7035 ABS Halogen
IDE Enclosure Distribution 54 Module PC Window 586X418X148mm RAL 7035 ABS Halogen
IDE Enclosure Distribution 54 Module PC Window 586X418X148mm RAL 7035 ABS Halogen - Image 2
IDE Enclosure Distribution 54 Module PC Window 586X418X148mm RAL 7035 ABS Halogen - Image 3

IDE Enclosure Distribution 54 Module PC Window 586X418X148mm RAL 7035 ABS Halogen

£256.16 Incl. VAT

IP65 surface distribution box with neutral and earth bars. A capacity of 54 modules with a transparent window. · · · Frame is covered with a sealing gasket that guarantees the IP65 protection · · Indoor & Outdoor use · · Transparent Window · · Base with double height providing greater space on the inside for wiring and devices · · Reinforcement rib delivering greater rigidity · · Top and bottom cut-outs for the entry of M40 · · DIN rails are supplied assembled in the bases · · Reversible 180° horizontal window opening · · Wall mountable · · Branding & colour options available

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CDN54PT/RR Categories: , , Product Code: 2501177596

Description

Technical Specifications  Technical Specifications Small distribution board Colour Grey Housing material Plastic Type of covering Door Mounting method Surface mounted Degree of protection (IP rating) IP65 Width 418 mm Height 586 mm Depth 148 mm RAL number 7035 Number of rows 3 Width in number of modular spacings 54 EMC-version No Transparent cover/door Yes Extension possible No With lock No Earthing terminal block Yes Neutral terminal block Yes Signal passing door No With DIN-rail Yes With mounting plate No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
