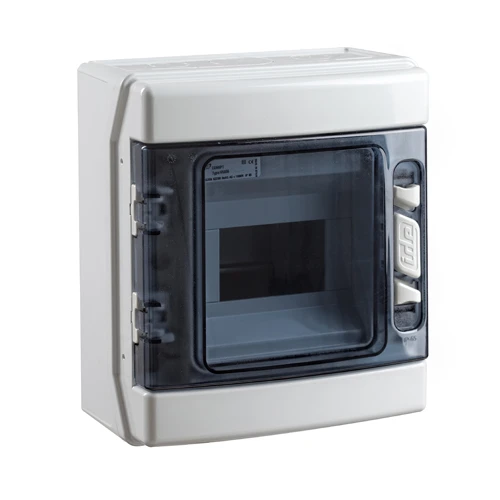

Enclosure Distribution 6 Module Pc Window 231X202X113mm Ral 7035 Abs Halogen F
Enclosure Distribution 6 Module Pc Window 231X202X113mm Ral 7035 Abs Halogen F
Enclosure Distribution 6 Module Pc Window 231X202X113mm Ral 7035 Abs Halogen F - Image 2
Enclosure Distribution 6 Module Pc Window 231X202X113mm Ral 7035 Abs Halogen F - Image 3

Enclosure Distribution 6 Module Pc Window 231X202X113mm Ral 7035 Abs Halogen F

£38.65 Incl. VAT

IP65 surface distribution box with neutral and earth bars. A capacity of 6 modules with a transparent window. · · · Frame is covered with a sealing gasket that guarantees the IP65 protection · · Indoor & Outdoor use · · Transparent Window · · Base with double height providing greater space on the inside for wiring and devices · · Reinforcement rib delivering greater rigidity · · Top and bottom cut-outs for the entry of M40 · · DIN rails are supplied assembled in the bases · · Reversible 180° horizontal window opening · · Wall mountable

24 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CDN6PT/RR Categories: , , Brand: Part Number: 2501177590

Description

Technical Specifications  Technical Specifications Small distribution board Colour Grey Type of covering Door Mounting method Surface mounted Housing material Plastic Width in number of modular spacings 6 With DIN-rail Yes RAL number 7035 Number of rows 1 Depth 113 mm Width 202 mm Height 231 mm Degree of protection (IP rating) IP65 With lock No Earthing terminal block Yes Neutral terminal block Yes Signal passing door No Transparent cover/door Yes Extension possible No EMC-version No With mounting plate No · Technical Data Sheet – Click to Download
