Enclosure For Command Devices 22mm Rou
£44.51 Incl. VAT

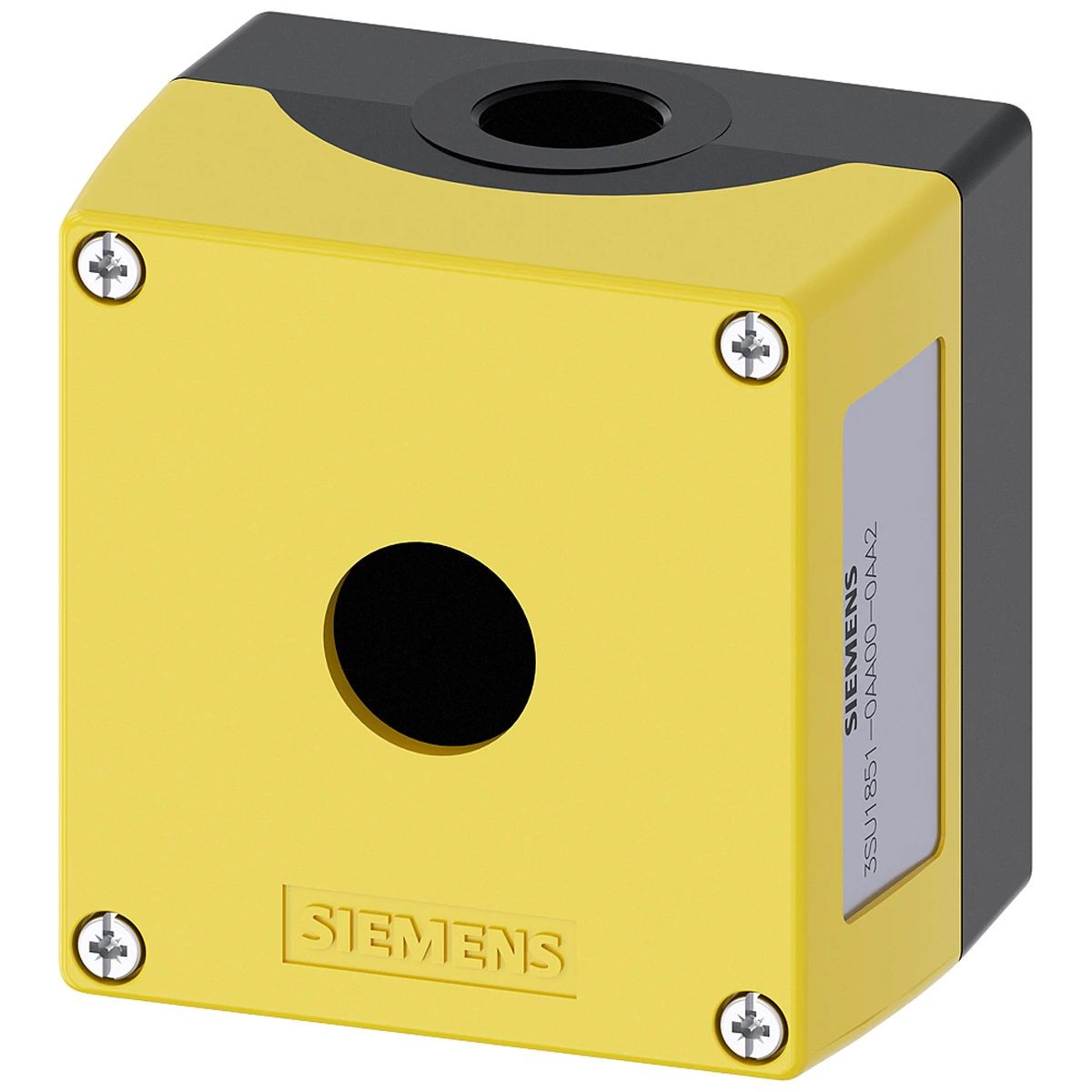

Siemens square command device enclosure made up of a yellow (lid) and drak grey (base) metal housing. This enclosure has 1 command point in it’s centre. · · · Floor mounting · · Mounting type: Vertical/Horizontal · · Cable routing above and below; both 1 x M20. · · Tightening torque (mounting screws): 1.5-1.7Nm · · IP66/67/69 Degree of protection · · Shock resistance: Category 1, Class B · · Vibration resistance: Category 1, Class B · · Ambient operating temperature: -25 to 70°C · · Ambient storage temperature: -40 to 80°C
Out of stock
Description
Technical Specifications Technical Specifications Enclosure for control circuit devices Construction type housing Surface mounting housing Colour housing cover Yellow Height 89.4 mm Depth 64 mm Width 85 mm Diameter openings 22.3 mm Number of command positions 1 · Technical Data Sheet – Click to Download
