Siemens Enclosure For Command Devices 22mm Round
Siemens Enclosure For Command Devices 22mm Round
Siemens Enclosure For Command Devices 22mm Round - Image 2
Siemens Enclosure For Command Devices 22mm Round - Image 3

Siemens Enclosure For Command Devices 22mm Round

£13.76 Incl. VAT

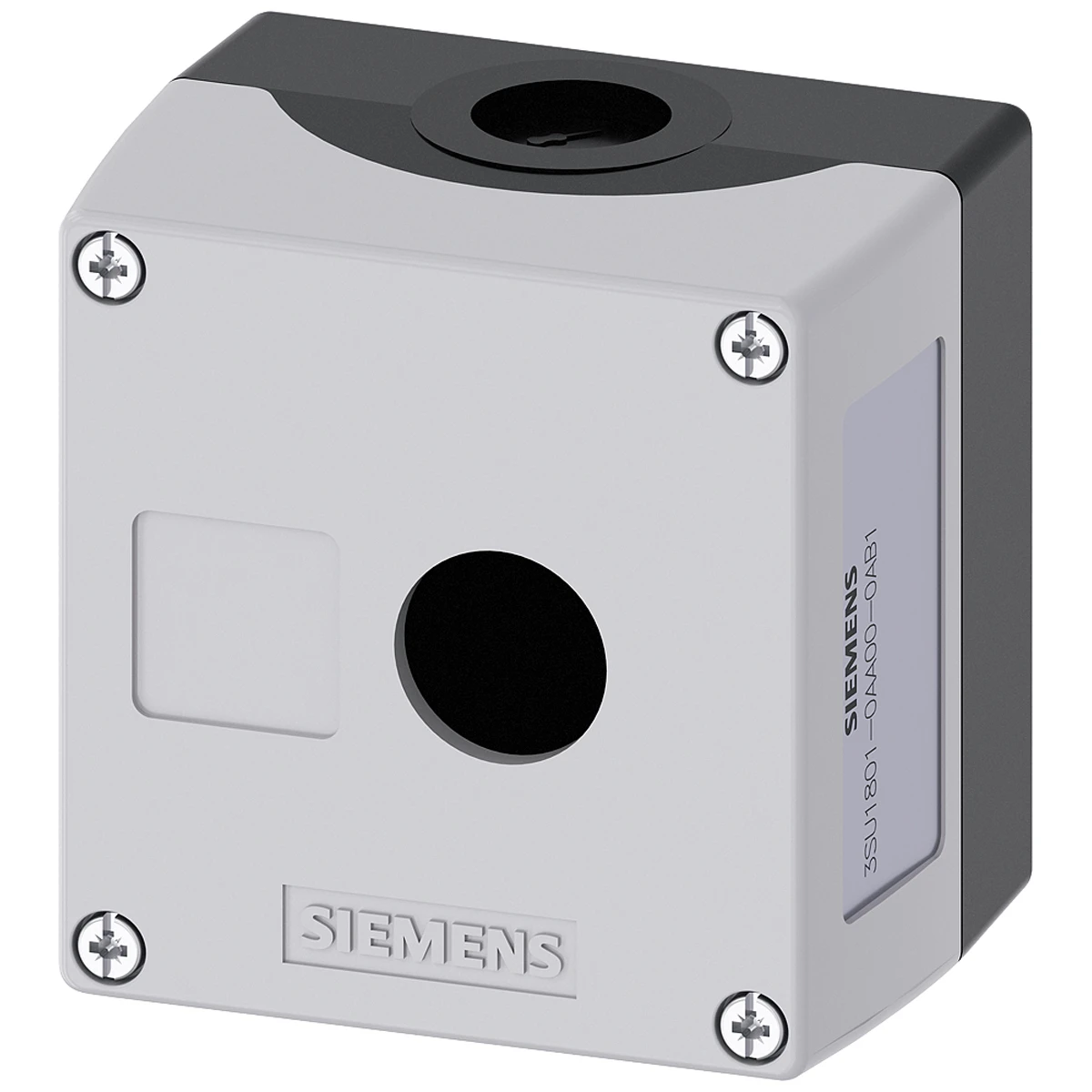

Siemens square command device enclosure made up of a light grey (lid) and drak grey (base) plastic housing. This enclosure has 1 command point in it’s centre. · · · With recess for label · · Floor mounting · · Mounting type: Vertical/Horizontal · · Cable routing above and below; both 1 x M20. · · Tightening torque (mounting screws): 1.5-1.7Nm · · IP66/67/69 Degree of protection · · Shock resistance: Category 1, Class B · · Vibration resistance: Category 1, Class B · · Ambient operating temperature: -25 to 70°C · · Ambient storage temperature: -40 to 80°C

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1801-0AA00-0AB1 Brand: Product Code: 1051118612

Description

Technical Specifications  Technical Specifications Enclosure for control circuit devices Housing material Plastic Colour housing cover Grey Construction type housing Surface mounting housing Width 85 mm Depth 64 mm Diameter openings 22.3 mm Height 85 mm Number of command positions 1 · Technical Data Sheet – Click to Download
