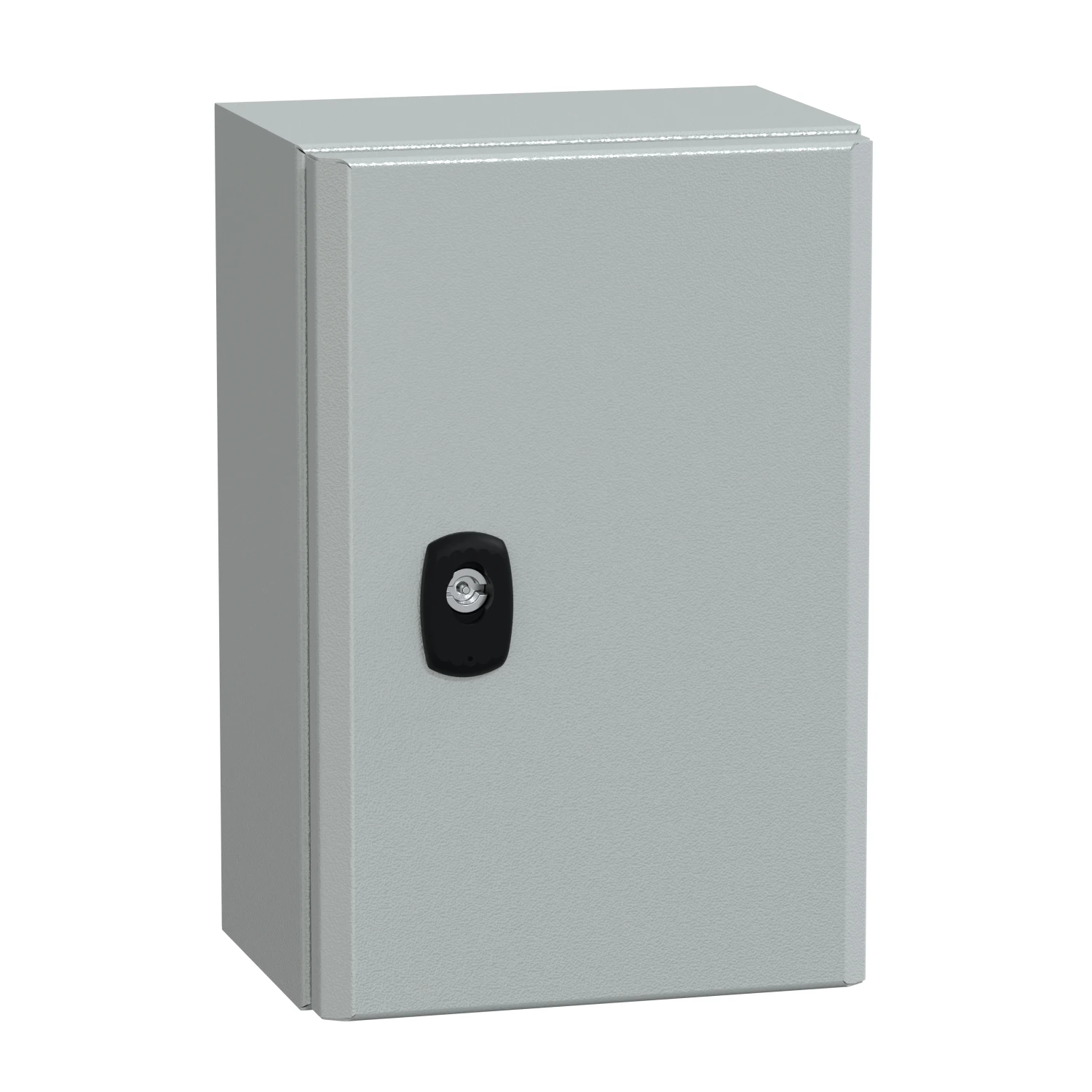

Enclosure Plain Door+Mounting Plate 300 x 200 x 150mm Steel IP66
£86.40 Incl. VAT
Spacial S3D wall mounted steel enclosure with plain door. 300 x 300 x 150 mm. Single piece body, mounting plate included. 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035. · · · One-piece folded and welded body, double plate thickness gutter shaped front profile · · Flat rear panel · · Degree of protection: IP 66 for all single door enclosures, IP 55 for double door enclosures · · A light and resistant enclosure with folded cross structure sheet steel · · External mechanical impact resistance: IK 10 for enclosures with plain door, IK 08 for enclosures with glazed door · · Time saving : 54 dimensions with or without plain chassis, customized offer, wide range of accessories · · Wide range of sizes : from 300x200x150 to 1400x1000x300 · · Choice : plain door or glazed door · · Paint finish : colour grey RAL 7035 · · Certifications : EN 62208 (LCIE), UL, CUL, BV, DNV, LR, GL, ATEX (modified enclosure)
Out of stock
Description
Technical Specifications Technical Specifications Enclosure/switchgear cabinet Height 300 mm Number of doors 1 Width 200 mm RAL number 7035 Number of locks 1 With mounting plate Yes Depth 150 mm Tackable No Suitable for wall built-in No With ventilation door No Suitable for outdoor set-up Yes Suitable for metrical mounting Yes EMC-version No Floor installation possible No Mounting plate depth-adjustable No With backside door No Pole fastening Yes Pitched roof No With glazed door No Wall fastening possible Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192710
