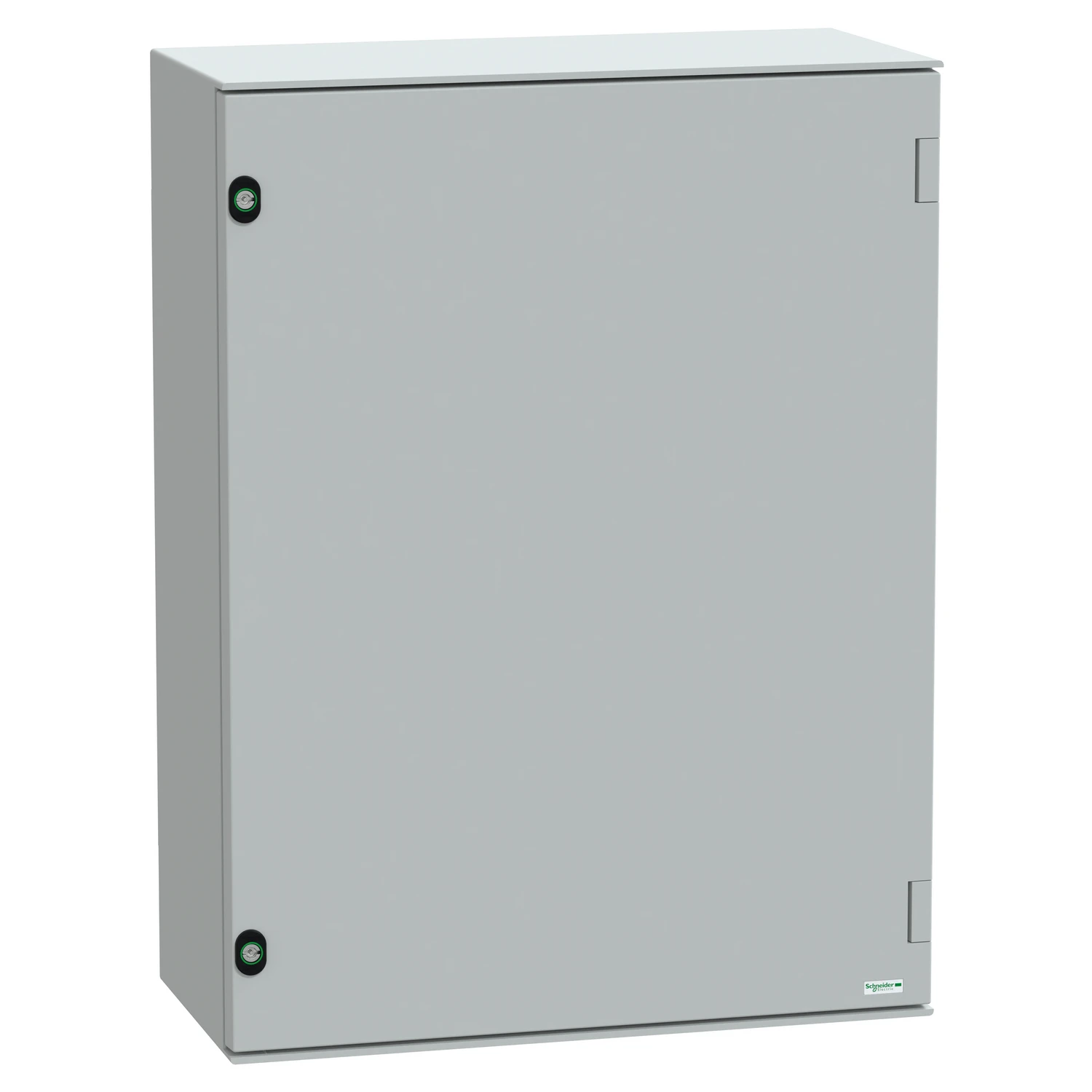

Enclosure PLM Completely Sealed 847 x 636 x 300mm
£414.59 Incl. VAT
Wall-mounting enclosure polyester monobloc IP66 H847xW636xD300mm. range: Thalassa – product name: Thalassa PLM – device short name: PLM – device application: multi-purpose – product or component type: compact enclosure – enclosure nominal height: 847 mm – enclosure nominal width: 636 mm – enclosure nominal depth: 300 mm – device composition: body 1, door 1, lock 2 – body type: built-in canopy, one piece moulded with notches in the rear – lock type: 3 mm double-bar lock. · · · Thalassa PLM wall-mounting polyester enclosure monobloc. · · 847 x 636 x 300 mm. · · Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. · · 2 locks (3 mm double-bar lock). Accessible front. · · Polyester reinforced with fibreglass. · · Grey RAL 7035. · · IP66, IK10, NEMA (13,4X) 960°C fire resistance.
Out of stock
Description
Technical Specifications Technical Specifications Enclosure/switchgear cabinet Number of doors 1 Height 847 mm Width 636 mm Depth 300 mm Suitable for outdoor set-up No EMC-version No Floor installation possible No Mounting plate depth-adjustable No Tackable No RAL number 7035 Number of locks 2 Suitable for wall built-in No Pitched roof No With glazed door No With ventilation door No With backside door No Wall fastening possible Yes Pole fastening Yes With mounting plate No Suitable for metrical mounting Yes · Technical Data Sheet – Click to Download
