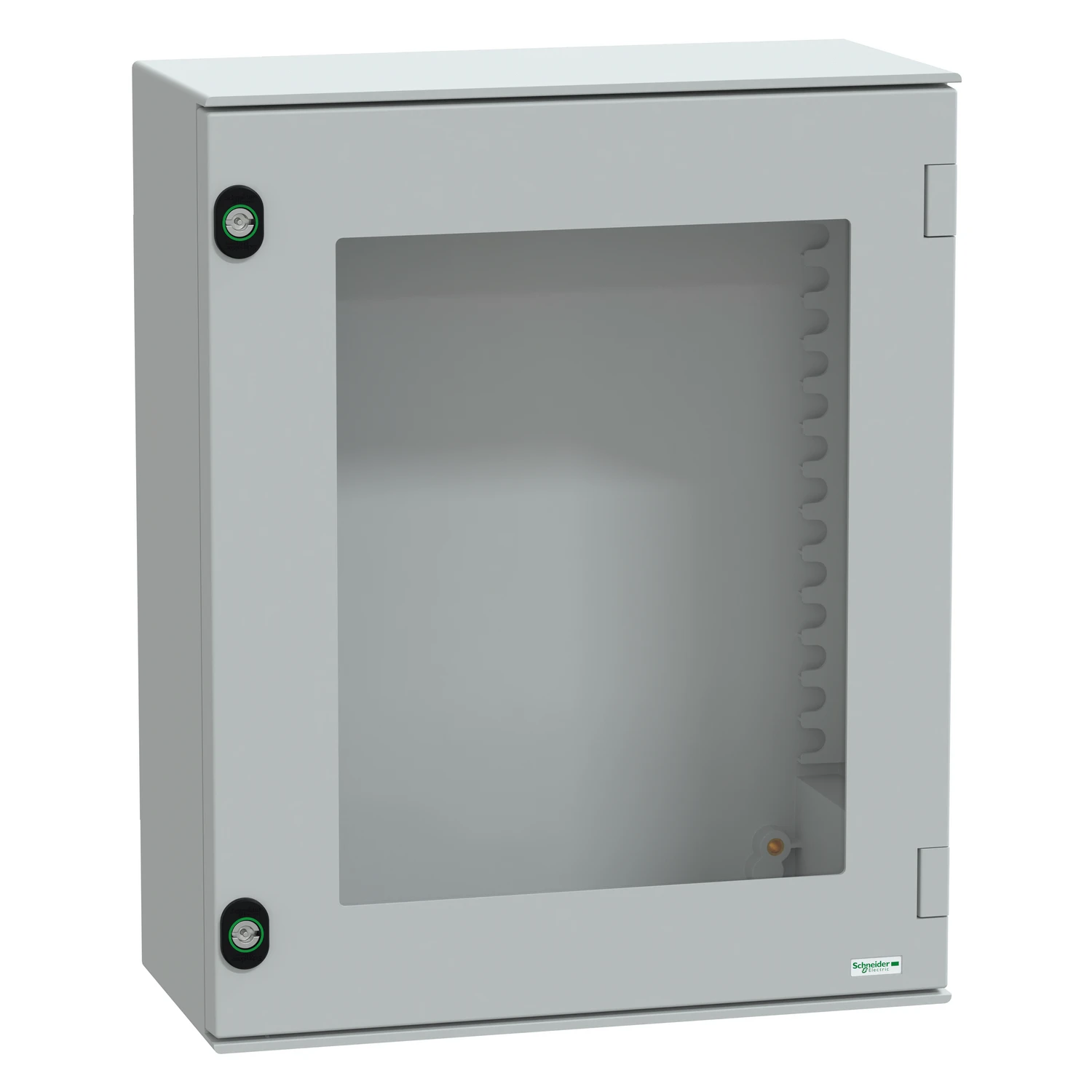

Enclosure Plm Glazed Door 530 x 430 x 200mm
£243.14 Incl. VAT
Wall-mounting enclosure polyester monobloc IP66 H530xW430xD200mm glazed door. range: Thalassa – product name: Thalassa PLM – device short name: PLM – device application: multi-purpose – product or component type: compact enclosure – enclosure nominal height: 530 mm – enclosure nominal width: 430 mm – enclosure nominal depth: 200 mm – device composition: body 1, door 1, lock 2 – body type: built-in canopy, one piece moulded with notches in the rear – door type: transparent – lock type: 3 mm double-bar lock. · · · Thalassa PLM wall-mounting polyester enclosure with glazed door. · · 529 x 430 x 200 mm. · · Without mounting plate, built-in canopy. · · 2 points door locking system with 3-mm double-bar locks. · · Polyester reinforced with fibreglass body. · · Protection IP 66, IK08, Grey RAL 7035. · · Operating frequency: 50 – 60Hz · · Tightening torque: 0.8 – 1.2Nm/ 2 – 2.5Nm · · Ambient operating temperature: -40°C to 70°C · · IP20 Degree of protection
Out of stock
Description
Technical Specifications Technical Specifications Enclosure/switchgear cabinet Height 530 mm Width 430 mm Number of doors 1 Number of locks 2 RAL number 7035 Tackable No Pitched roof No EMC-version No Floor installation possible No Mounting plate depth-adjustable No Suitable for wall built-in No Depth 200 mm With ventilation door No With backside door No Wall fastening possible Yes Pole fastening Yes Suitable for metrical mounting Yes Suitable for outdoor set-up Yes With mounting plate No With glazed door Yes · Technical Data Sheet – Click to Download
