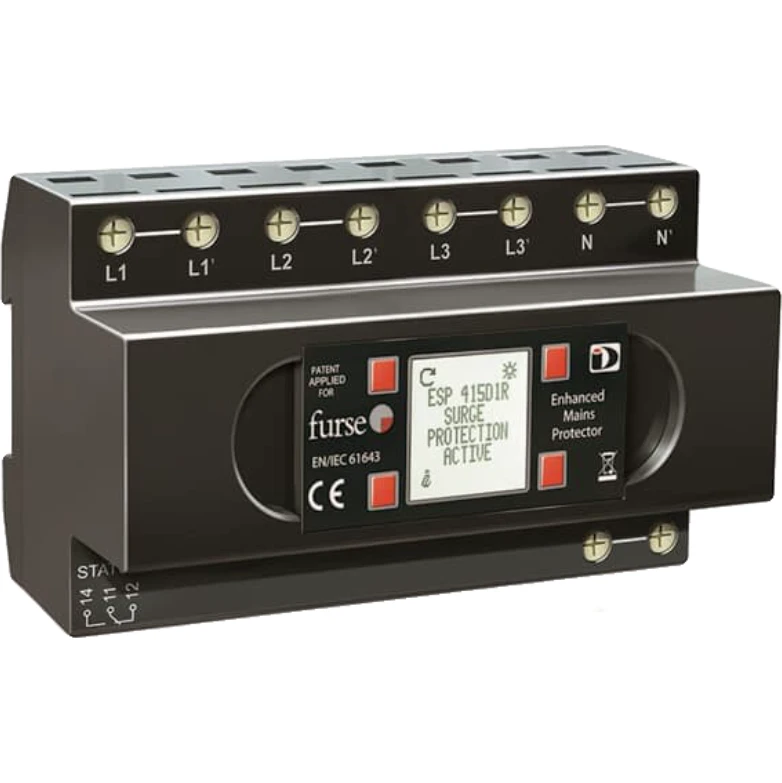

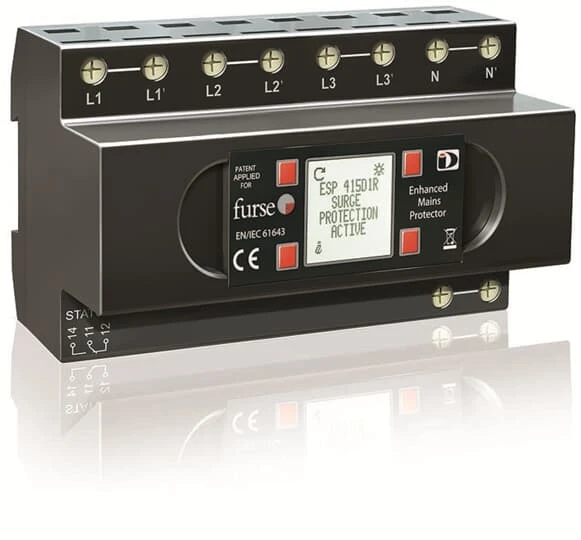

ESP 415D1 Surge Protective Device
ESP 415D1 Surge Protective Device
ESP 415D1 Surge Protective Device - Image 2
ESP 415D1 Surge Protective Device - Image 3

ESP 415D1 Surge Protective Device

£1,311.13 Incl. VAT

415d1 type 1+2+3 power spd for 3 phase 415v supplies led status indication din rail mounting. · · · Very low let-through voltage (enhanced protection to IEC/BS EN 62305) between all sets of conductors (phase to neutral, phase to earth, neutral to earth – Full Mode protection) · · Full Mode design capable of handling partial lightning currents as well as allowing continual operation of protected equipment · · Repeated protection in lightning intense environments · · Innovative multiple thermal disconnect technology for safe disconnection from faulty or abnormal supplies (without compromising protective performance)

1 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 7TCA085460R0105 Categories: , Brand: Part Number: 2500353815

Description

Technical Specifications  Technical Specifications Surge protection device for power supply systems Mounting method DIN rail (top hat rail) 35 mm Signalling at the device Optic Degree of protection (IP rating) IP20 Construction size 8 modular spacing Nominal voltage AC 240 V Nominal discharge surge current 8/20 µs (In) 20 kA Voltage protection level 0.9 kV Max. voltage (Uc) 280 V Number of conductors (without earthing) 4 Max. conductor cross section flexible (fine-strand) 16 mm² Max. discharge surge current (8/20) 40 kA Short-circuit breaking capacity (Isccr) 25 kA Voltage protection level N-PE 0.9 kV Max. overcurrent protection device, parallel connection (fuse) – A Max. continuous voltage DC – V Max. PV-voltage – V Max. conductor cross section solid (solid, stranded) 16 mm² Voltage protection level L-N 0.9 kV Nominal voltage DC – V Integrated short-circuit protection selective to fuse gG – A Max. overcurrent protection device, series connection (fuse) – A With remote signalling contact Yes System configuration DC No Type / Test class 2 Yes Integrated backup fuse Yes System configuration TT No System configuration other No System configuration TN-C Yes System configuration TN-S Yes System configuration IT No System configuration TN Yes System configuration TN-C-S Yes Integrated short-circuit protection No Leakage-current free No · Technical Data Sheet – Click to Download
