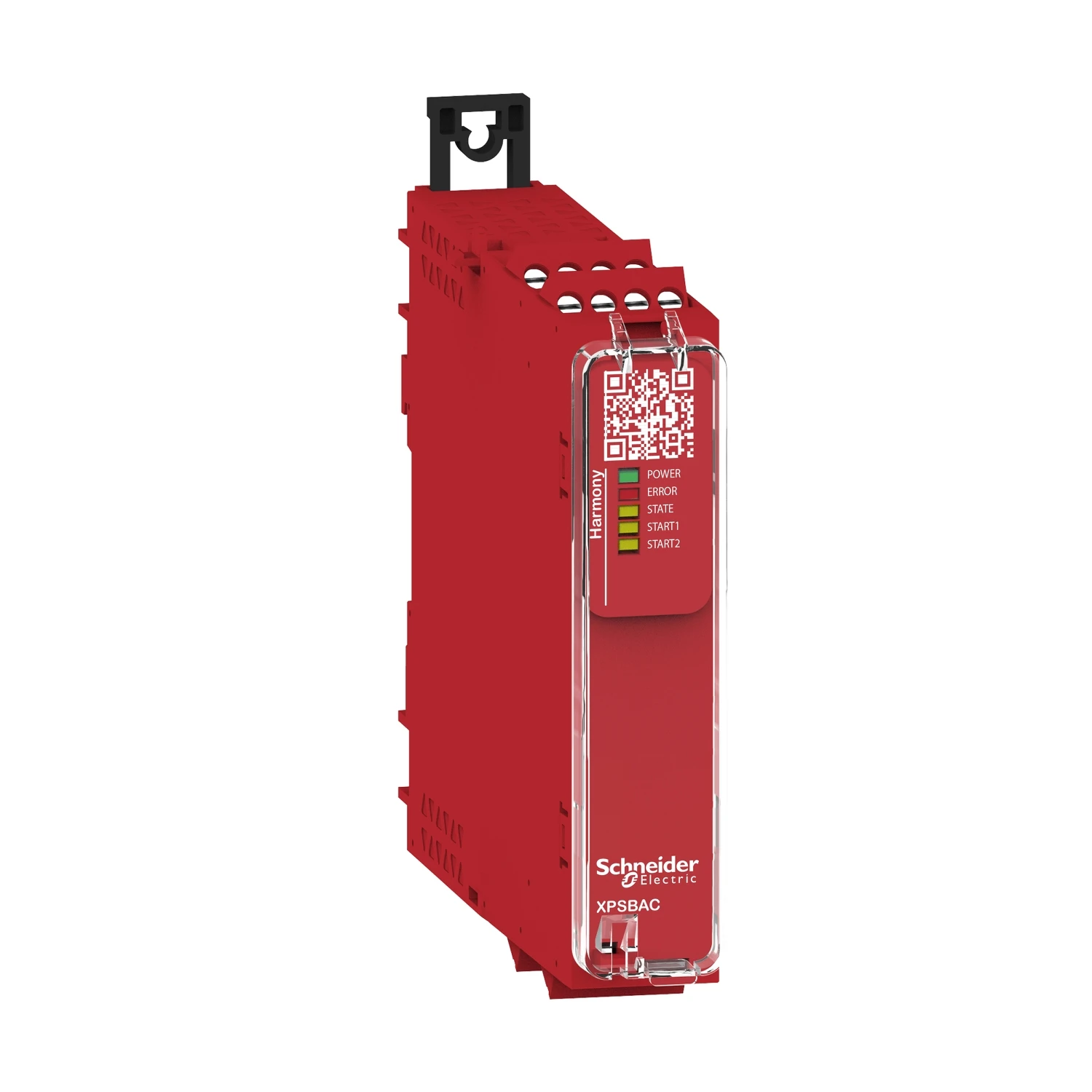

Estop or guard ,Harmony XPS, connected to supply terminals 24 V AC/DC , no inputs, screw
Estop or guard ,Harmony XPS, connected to supply terminals 24 V AC/DC , no inputs, screw
Estop or guard ,Harmony XPS, connected to supply terminals 24 V AC/DC , no inputs, screw - Image 2
Estop or guard ,Harmony XPS, connected to supply terminals 24 V AC/DC , no inputs, screw - Image 3
Estop or guard ,Harmony XPS, connected to supply terminals 24 V AC/DC , no inputs, screw - Image 4

Estop or guard ,Harmony XPS, connected to supply terminals 24 V AC/DC , no inputs, screw

£224.23 Incl. VAT

XPSBAC safety modules are used for monitoring Emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1 and also meet the safety requirements for the electrical monitoring of switches in protective devices conforming to standard EN/ISO 14119. They provide protection for both the machine operator and the machine by immediately stopping the dangerous movement on receipt of a stop instruction from the operator, or on detection of a fault in the safety circuit itself. XPSBAC module have 4 NO safety outputs and a serial or parallel hardwire configurable NC output for signalling to the PLC. The safety functions are fixed. To aid diagnostics, XPSBAC modules have a serial or parallel hardwire configurable NC output to provide information on the status of the zero speed detection circuit. 5 LEDs on the front face provide information on the monitoring circuit status. · · · Start inputs Automatic, manual & monitored start · · Safety inputs ? · · Control outputs 1 · · Safety outputs 4 NO · · Diagnostic outputs 2 NC · · Connection type Removable terminal blocks · · Terminals 16 · · Module width 22.5 mm/0.886 in. · · Maximum achievable safety level · · PL e/Category 4 conforming to ISO 13849-1

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XPSBAC14AP Categories: , , Brand: Part Number: 2501537456

Description

Technical Specifications  Technical Specifications Device for monitoring of safety-related circuits Model Basic device Stop category acc. to IEC 60204 0 Performance level acc. to EN ISO 13849-1 Level e Type of safety acc. IEC 61496-1 4 Evaluation inputs 2-channel SIL according to IEC 61508 3 Voltage type for actuating AC/DC Type of electric connection Screw connection Width 22.5 mm Number of outputs, signalling function, delayed, semiconductors 0 Number of outputs, signalling function, delayed, with contact 0 Number of outputs, signalling function, undelayed, semiconductors 0 Height 100 mm Depth 120 mm Number of outputs, safety related, delayed, semiconductors 0 Number of outputs, signalling function, undelayed, with contact 0 Number of outputs, safety related, delayed, with contact 0 Number of outputs, safety related, undelayed, semiconductors 0 Number of outputs, safety related, undelayed, with contact 5 Release-delay – s Rail mounting possible Yes With muting function No With approval according to UL No Rated control supply voltage at DC 24 – 24 V Rated control supply voltage at AC 60 Hz 24 – 24 V Rated control supply voltage at AC 50 Hz 24 – 24 V With approval for TÜV Yes With feedback circuit Yes With start input Yes With detachable clamps Yes With approval for BG BIA No Suitable for monitoring of proximity switches No Suitable for monitoring of position switches Yes Suitable for monitoring of valves No Suitable for monitoring of tactile sensors No Suitable for monitoring of optoelectronic protection equipment No Suitable for monitoring of emergency-stop circuits Yes Suitable for monitoring of magnetic switches No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192667 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205395
