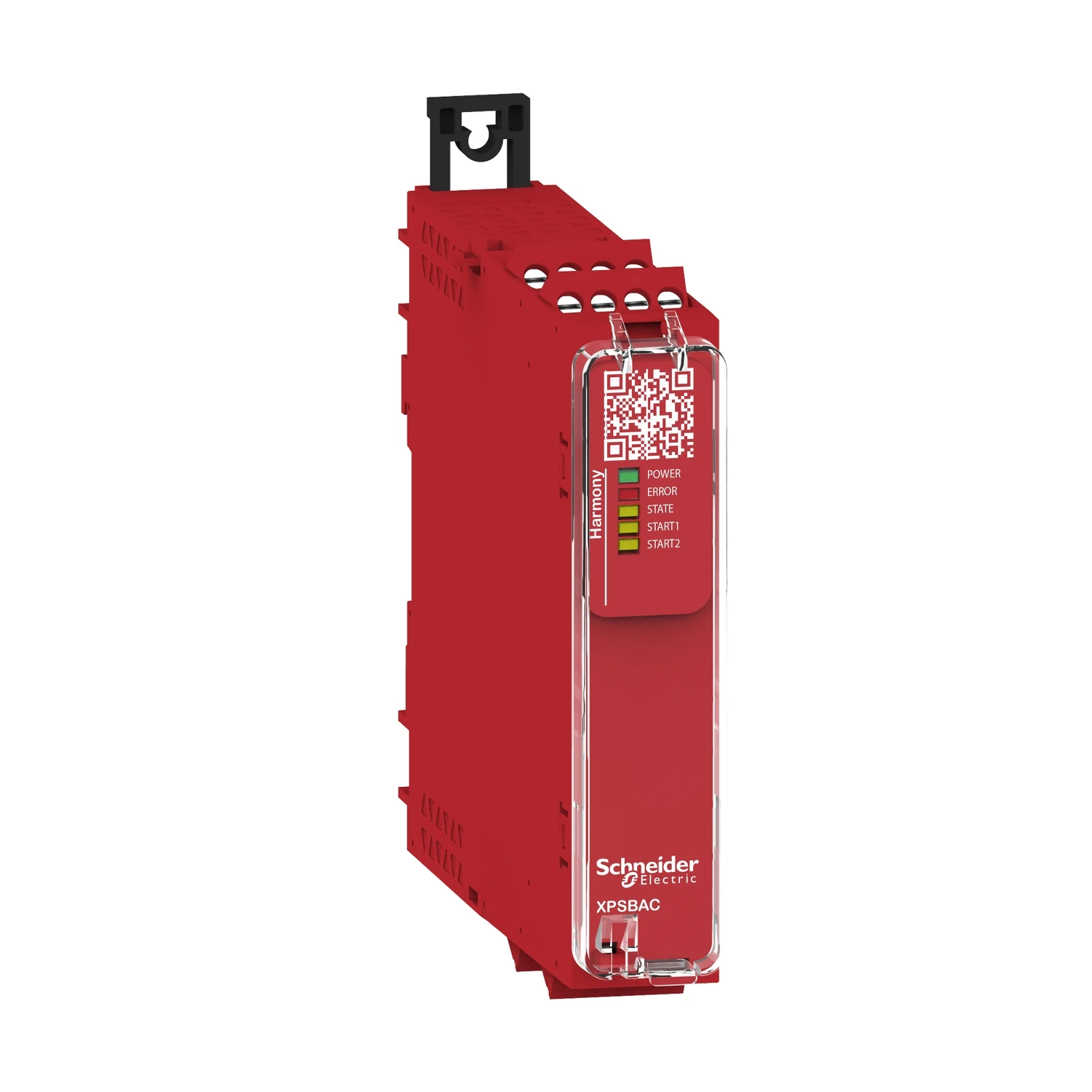

Estop or guard ,Harmony XPS, connected to supply terminals 48-240 V AC/DC , no inputs, screw
£246.52 Incl. VAT
XPSBAC safety modules are used for monitoring Emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1 and also meet the safety requirements for the electrical monitoring of switches in protective devices conforming to standard EN/ISO 14119. They provide protection for both the machine operator and the machine by immediately stopping the dangerous movement on receipt of a stop instruction from the operator, or on detection of a fault in the safety circuit itself. XPSBAC module have 4 NO safety outputs and a serial or parallel hardwire configurable NC output for signalling to the PLC. The safety functions are fixed. To aid diagnostics, XPSBAC modules have a serial or parallel hardwire configurable NC output to provide information on the status of the zero speed detection circuit. 5 LEDs on the front face provide information on the monitoring circuit status. · · · This safety relay is designed for monitoring Emergency stop and Guard switch. · · The safety relay is powered with 48-240V AC/DC, and equipped with a screw removable terminal block. · · This basic safety modules embeds pre-defined safety functions. · · This safety relay embeds 1 control output, 4 NO safety outputs, and 2 NC diagnostic outputs. · · The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. · · This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). · · This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. · · This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. · · Harmony safety relays are compatible with Modicon logic controllers.
Out of stock
Description
Technical Specifications Technical Specifications Device for monitoring of safety-related circuits Model Basic device Performance level acc. to EN ISO 13849-1 Level e Evaluation inputs 2-channel Type of safety acc. IEC 61496-1 4 Stop category acc. to IEC 60204 0 Type of electric connection Screw connection Voltage type for actuating AC/DC SIL according to IEC 61508 3 Width 22.5 mm Height 100 mm Number of outputs, signalling function, delayed, with contact 0 Number of outputs, signalling function, delayed, semiconductors 0 Number of outputs, signalling function, undelayed, semiconductors 0 Number of outputs, safety related, undelayed, with contact 5 Number of outputs, safety related, undelayed, semiconductors 0 Number of outputs, safety related, delayed, with contact 0 Number of outputs, signalling function, undelayed, with contact 0 Rated control supply voltage at AC 50 Hz 48 – 240 V Release-delay – s Number of outputs, safety related, delayed, semiconductors 0 Depth 120 mm Suitable for monitoring of position switches Yes With feedback circuit Yes With approval for TÜV Yes Suitable for monitoring of proximity switches No With approval for BG BIA No Rail mounting possible Yes Rated control supply voltage at DC 48 – 240 V Rated control supply voltage at AC 60 Hz 48 – 240 V Suitable for monitoring of valves No Suitable for monitoring of tactile sensors No Suitable for monitoring of optoelectronic protection equipment No Suitable for monitoring of emergency-stop circuits Yes Suitable for monitoring of magnetic switches No With start input Yes With muting function No With approval according to UL No With detachable clamps Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192667 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205395
