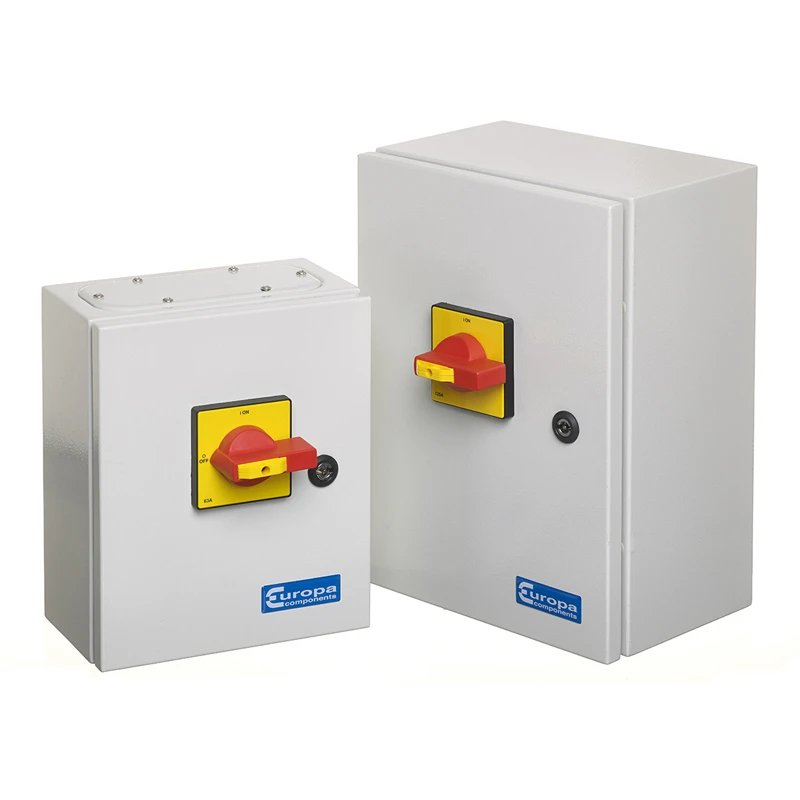

Europa Enclosed Switch Disconnector Switch 6-Pole 125A
£331.15 Incl. VAT
Europa Enclosed Switch Disconnector is manufactured from robust IP65 flame retardant material case with plenty of space inside the enclosure for ease of installation. It features padlockable for added security. Suitable for controlling machinery, equipment in industrial application. · · · IP65 protection rating · · CB, CE and SEMKO approvals · · Bottom Gland Plate / Epoxy Coated RAL: 7035 · · IEC, EN 60947-1 and 3 International / European Standard
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Degree of protection (IP), front side IP65 Rated permanent current Iu 125 A Rated operation power at AC-3, 400 V 55 kW Number of poles 6 Rated operation power at AC-23, 400 V 75 kW Rated short-time withstand current lcw 30 kA Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-21, 400 V 125 A Rated operating voltage 690 – 690 V
