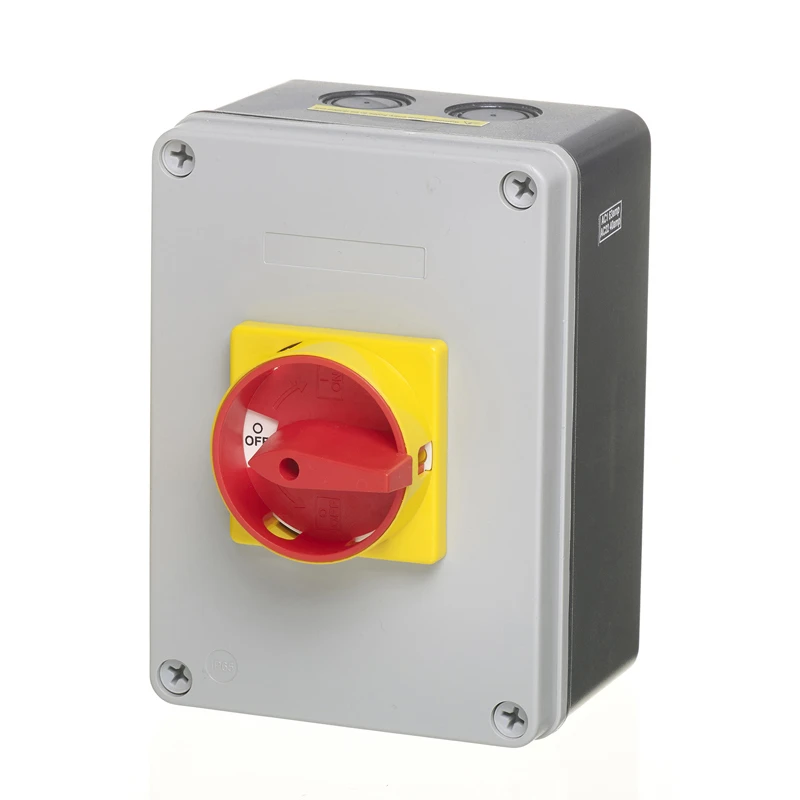

Europa Isolator Enclosed Rotary 4P Large IP65 32A 175X125X90mm Abs
Europa Isolator Enclosed Rotary 4P Large IP65 32A 175X125X90mm Abs
Europa Isolator Enclosed Rotary 4P Large IP65 32A 175X125X90mm Abs - Image 2

Europa Isolator Enclosed Rotary 4P Large IP65 32A 175X125X90mm Abs

£49.19 Incl. VAT

Europa Enclosed Switch Disconnector is manufactured from robust IP65 flame retardant material case with plenty of space inside the enclosure for ease of installation. It features padlockable for added security. Suitable for controlling machinery, equipment in industrial application. · · · IP65 protection rating · · CB, CE and SEMKO approvals · · UL508 / 25mm Knock-outs easy access and switch removal/flame retardant material · · IEC, EN 60947-1 and 3 International / European Standard

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LB324PBB Category: Brand: Product Code: 2500264288

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated permanent current at AC-21, 400 V 32 A Degree of protection (IP), front side IP65 Rated permanent current Iu 25 A Number of poles 4 Rated operation power at AC-3, 400 V 11 kW Rated operation power at AC-23, 400 V 15 kW Max. rated operation voltage Ue AC 690 V Rated short-time withstand current lcw 30 kA Rated operating voltage 690 – 690 V
