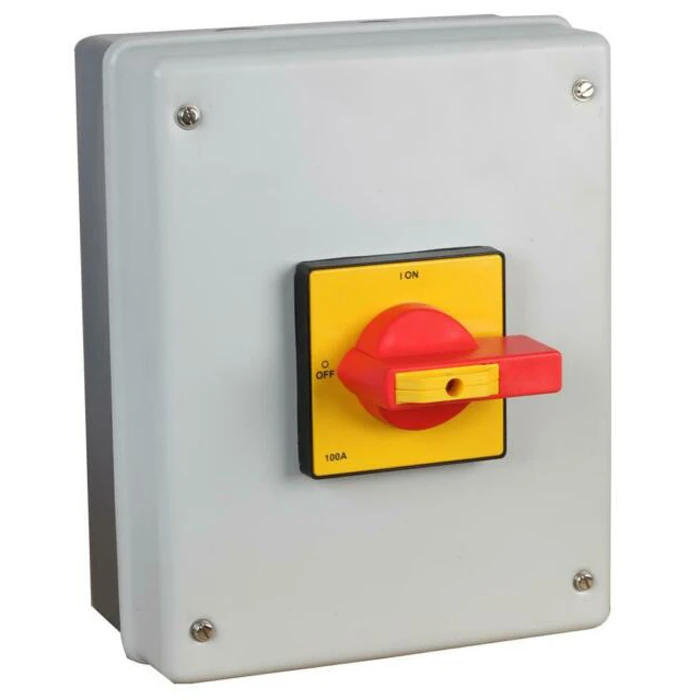

Europa Isolator Enclosed Rotary Four Pole IP54 100A Metal Clad
Europa Isolator Enclosed Rotary Four Pole IP54 100A Metal Clad
Europa Isolator Enclosed Rotary Four Pole IP54 100A Metal Clad - Image 2

Europa Isolator Enclosed Rotary Four Pole IP54 100A Metal Clad

£110.75 Incl. VAT

Europa Metal Clad Enclosed Switch-Disconnector with epoxy coated steel and padlockable for added security. Disconnector is available with rotary switch and metal clad enclosure. Ideal for the AC side of the inverter in photovoltaic installations. · · · CB, CE, SEMKO approvals · · IEC and EN 60947-3 standards · · IP54 protection rating · · Box Lid RAL: 7032 / Back Box RAL: 7043

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LB1004PSTB Category: Brand: Product Code: 2500506019

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Degree of protection (IP), front side IP54 Rated permanent current at AC-21, 400 V 100 A Rated permanent current Iu 100 A Rated operation power at AC-3, 400 V 45 kW Number of poles 4 Rated operation power at AC-23, 400 V 55 kW Max. rated operation voltage Ue AC 690 V Rated short-time withstand current lcw 30 kA Rated operating voltage 690 – 690 V
