Europa MCB SP B Curve 10A 6Ka
£3.70 Incl. VAT

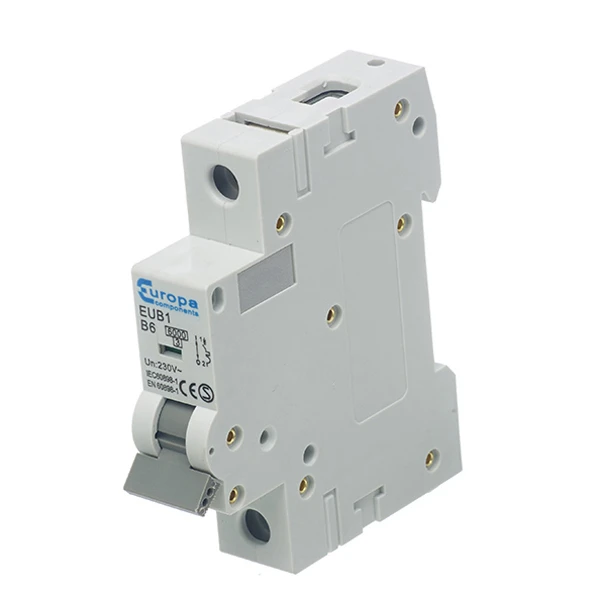

Europa EUB1 Miniature Circuit Breaker has a rated short circuit capacity of 6kA and type-B trip curve characteristics. Designed for DIN rail mounting and will fit consumer units and three phase distribution boards. · · · Din rail mounted for use on 230/240VAC · · EN60898 standard · · IP20 protection rating · · Tunnel terminal · · Space Saving · · Easily identify the fault · · Simple to resume supply · · Less maintenance and replacement cost
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Voltage type AC Tripping characteristic (type/curve) B Degree of protection (IP rating) IP20 Number of poles (total) 1 Rated current 10 A Rated voltage 230 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Current limiting class 3 Frequency 50 – 60 Hz
