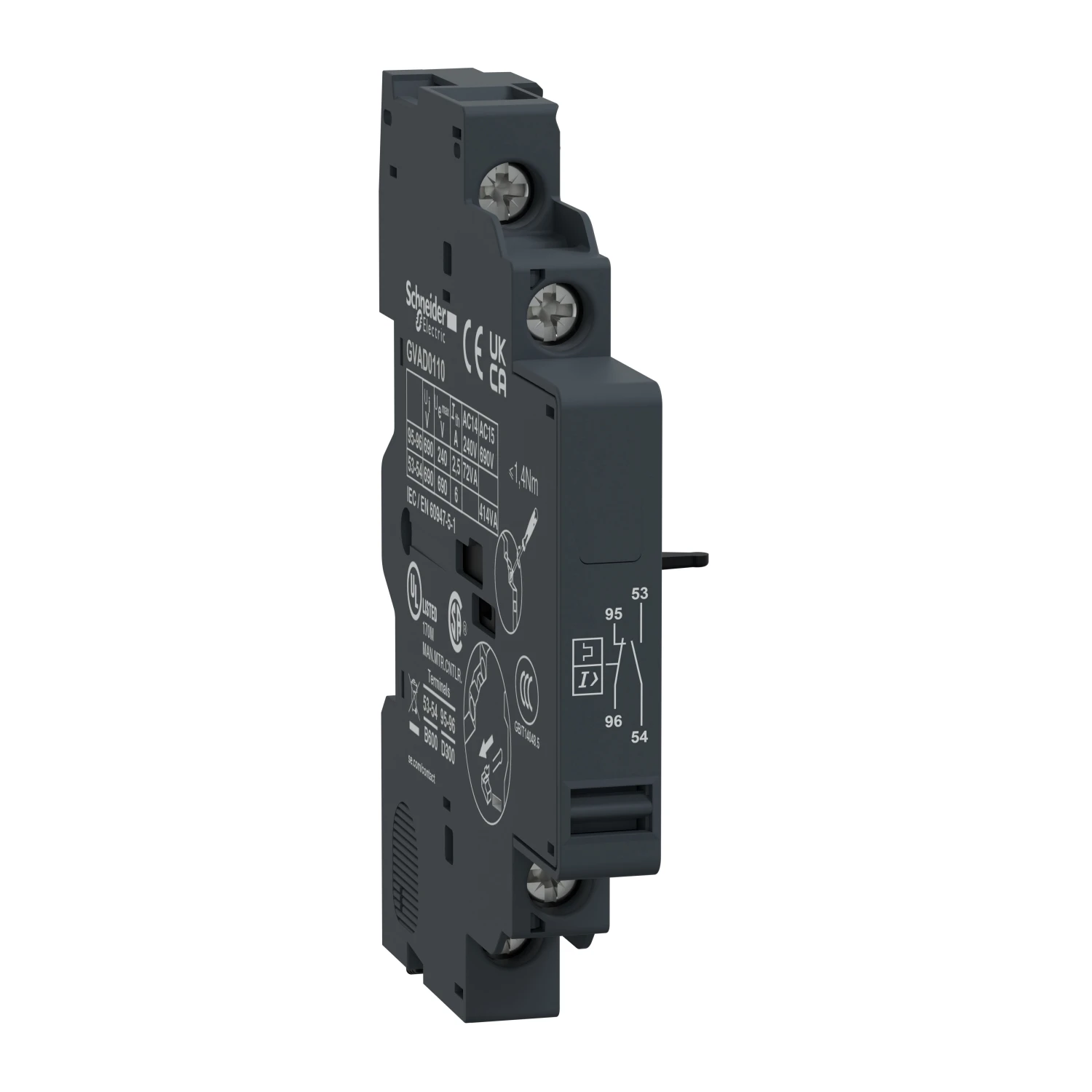

Fault Signalling/Instant. Aux. Contact Block TeSys 1NC+1NO
£22.27 Incl. VAT
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NC fault signaling contact + 1NO instantaneous auxiliary contact. Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. · · 1NC fault signaling contact + 1NO instantaneous auxiliary contact. · · Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. · · Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. · · To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. · · Depth: 66mm · · IP Rating: IP20 · · Normal State Configuration: 1NO + 1NC
Out of stock
Description
Technical Specifications Technical Specifications Auxiliary contact block Number of contacts as normally closed contact 1.00 Rated operation current Ie at AC-15, 230 V 3.30 A Number of fault-signal switches 1.00 Number of contacts as change-over contact 0.00 Number of contacts as normally open contact 1.00 · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188186
