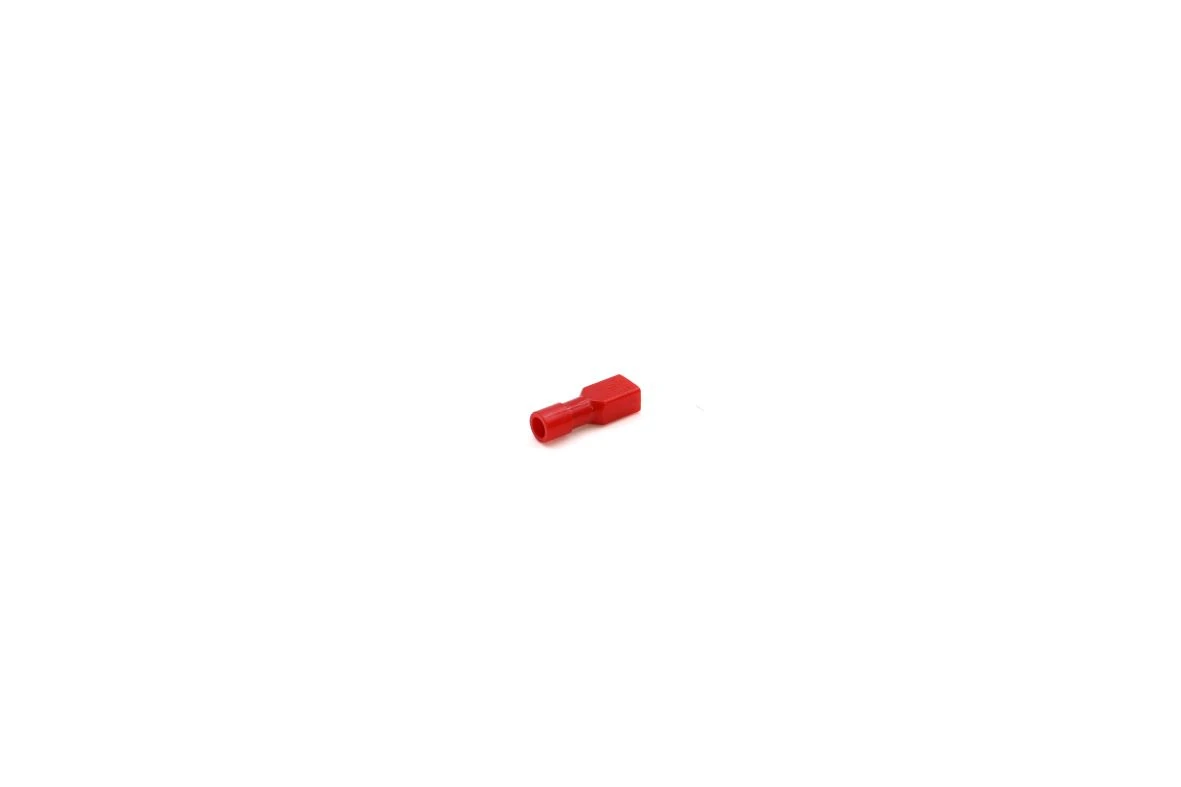

Female Disconnect Terminal Fully Ins. Red 4.8mm X 0.8mm 0.5-1.5mm²
Female Disconnect Terminal Fully Ins. Red 4.8mm X 0.8mm 0.5-1.5mm²
Female Disconnect Terminal Fully Ins. Red 4.8mm X 0.8mm 0.5-1.5mm² - Image 2
Female Disconnect Terminal Fully Ins. Red 4.8mm X 0.8mm 0.5-1.5mm² - Image 3

Female Disconnect Terminal Fully Ins. Red 4.8mm X 0.8mm 0.5-1.5mm²

£0.19 Incl. VAT

0.25mm²-1.5mm² Fully Polycarbonate insulated female disconnect terminal 4.8mm x 0.8mm tab size red · · · Insulation sleeve in Polycarbonate · · -20°C to +115°C Temperature Range · · Manufactured from Brass Strip with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Halogen Free · · Facilited Introduction of the conductor

400 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RF-F408P Categories: , , Brand: Part Number: 2500040299

Description

Technical Specifications  Technical Specifications Disconnect terminals Insulation Fully isolated Plug dimensions Flat 4.8×0.8 mm Model Plug Material insulation PC Colour insulation Red Material Brass Max. current (Imax) – A Nominal cross section 0.25 – 1.5 mm² AWG-range 22 – 16 With cam clamp No With tap spreader Yes
