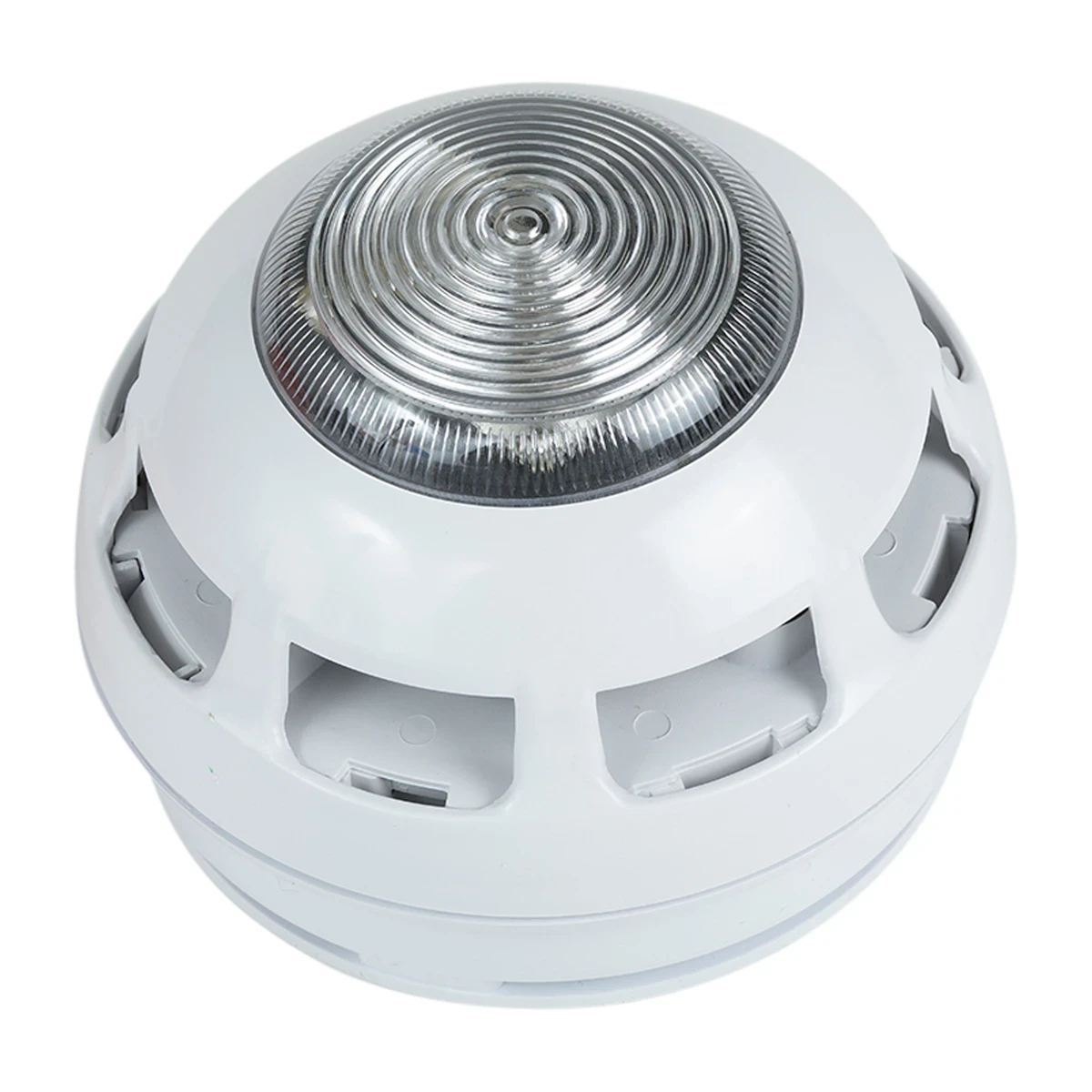

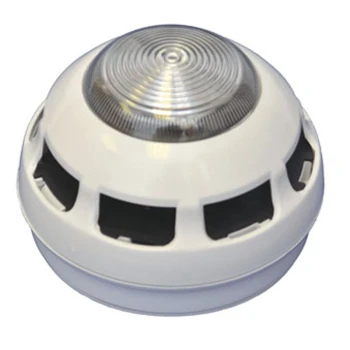

Fike Twinflex ASD Smoke and Heat Strobe Sensor Complete With Base

The Addressable Multipoint ASD is a plug-in type smoke detector that utilizes a photo-electric sensing chamber to make a measurement corresponding to smoke density. The device also incorporates a thermistor sensing circuit to allow for accurate heat measurement. These elements allow the device to be configured to one of 3 smoke, 3 heat or a combined setting. The device can also be fitted with an integral sounder or sounder/strobe capable of providing one of 7 different tones, operating at 65, 80 or 85dB(A) dependant on programming. This feature reduces the requirement for fitting extra annunciation devices. The detector is designed with a single colour red LED to indicate the device status; 400ms flashing indicates that the detector has been activated, 5 second flashing indicates the detector is in fault and 20 second flashing indicates a normal condition. Short circuit isolators are also built into the device in order to protect the system in the event of a cable fault.This detector is compatible with Fike’s SITA200plus, Duonet and Quadnet intelligent control panels. Its operating parameters are configured using the panel’s programming software and are stored within the Flash memory in the device. This on-board intelligence allows each detector to report and respond directly to the control panel without having to wait until it is polled. This enhanced digital protocol means less information is needed to be sent between the detector and the host control panel, resulting in faster, more reliable communication. · · · Smoke and heat detection · · With built-in sounder and strobe · · Complete with base · · Self calibrates every six hours · · For use with Rafiki 2 wire panels · · For use with FDW901 deep base
