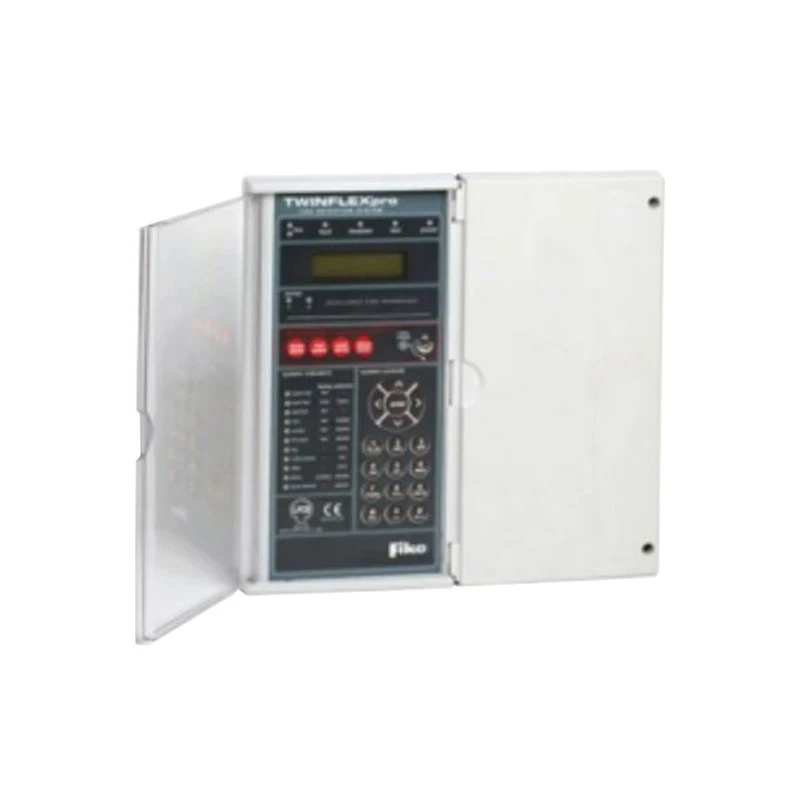

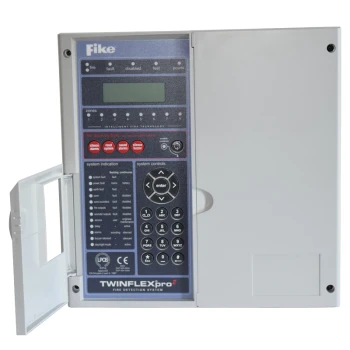

Fike Twinflex Pro 2 Zone Panel

The TwinflexPro panel is an intelligent 2-wire panel that is available in 2,4 & 8 zone variants which support up to 32 Twinflex devices per circuit.The TwinflexPro is able to recognise and separately identify between smoke detector, heat detector and a manual call point alarm. The panel also monitors each zone for detector head removal, device fault, End of line fault and open or short circuit fault.The panel provides two monitored outputs that may be configured as conventional sounder circuits, a volt free common fire relay and a volt free common fault relay. There are also two multifunction latching/non-latching inputs and one monitored input programmable with options such as Class-Change and Remote fire.The control panel also incorporates an integral power supply unit and requires 2 x 12V 3.2 AMH batteries to provide up to 72 hour standby times. · · · Analogue non-addressable · · Incorporates integral power supply unit · · 32 Twinflex devices per circuit · · All devices can be installed on the same cable so no need for separate sounder circuit · · Range of detectors available · · 2,4 & 8 zones available
