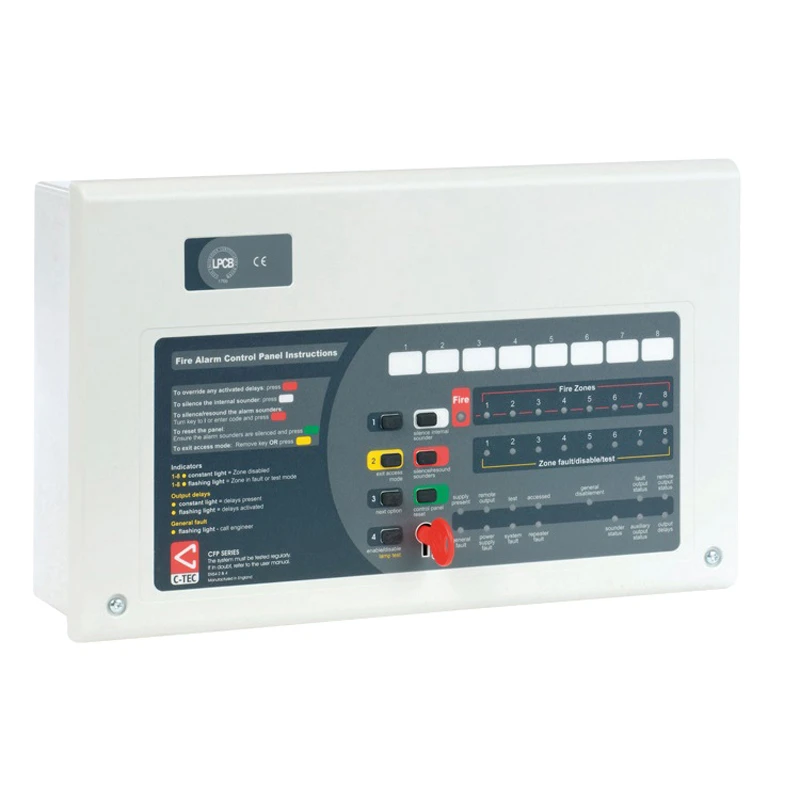

C-TEC Fire Alarm Panel Repeater 8 Zone 380 x 235 x 96mm
CFP 8 zone repeater. Max 8 per system. Max. 2 x 3.2Ah batteries · · · Up to 8 repeaters per CFP master · · Communicates over screened two-wire fire resistant cable · · Total repeater network cable length should not exceed 1KM · · Attractive flush or surface mountable plastic lid and enclosure – no bezel required · · Plastic lid and base · · Can be used to repeat the functions of a master CFP standard or AlarmSense 2-8 zone fire panel at remote parts of site (e.g. all potential fire service entrances).
Description
Technical Specifications Technical Specifications Central fire alarm panel Mounting method Surface mounting Width 367 mm Depth 75 mm Operating voltage 230 V Height 220 mm Interface external Yes Suitable for bus connection No Radio connection No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
