FlameGuard 1-Gang Dry Lining Box 47mm

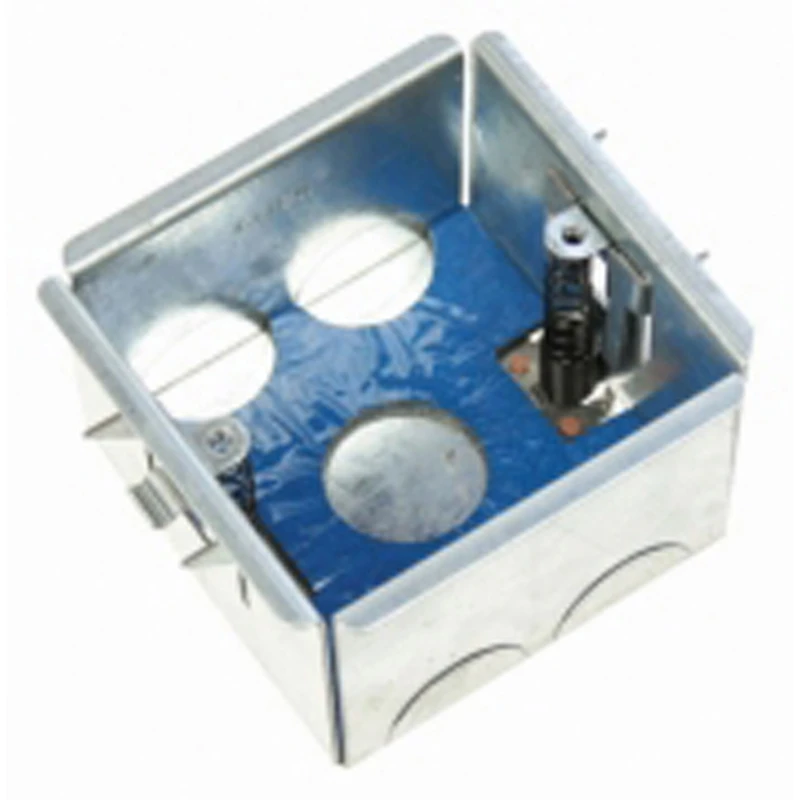

FlameGuard 1-Gang Dry Lining Box 47mm

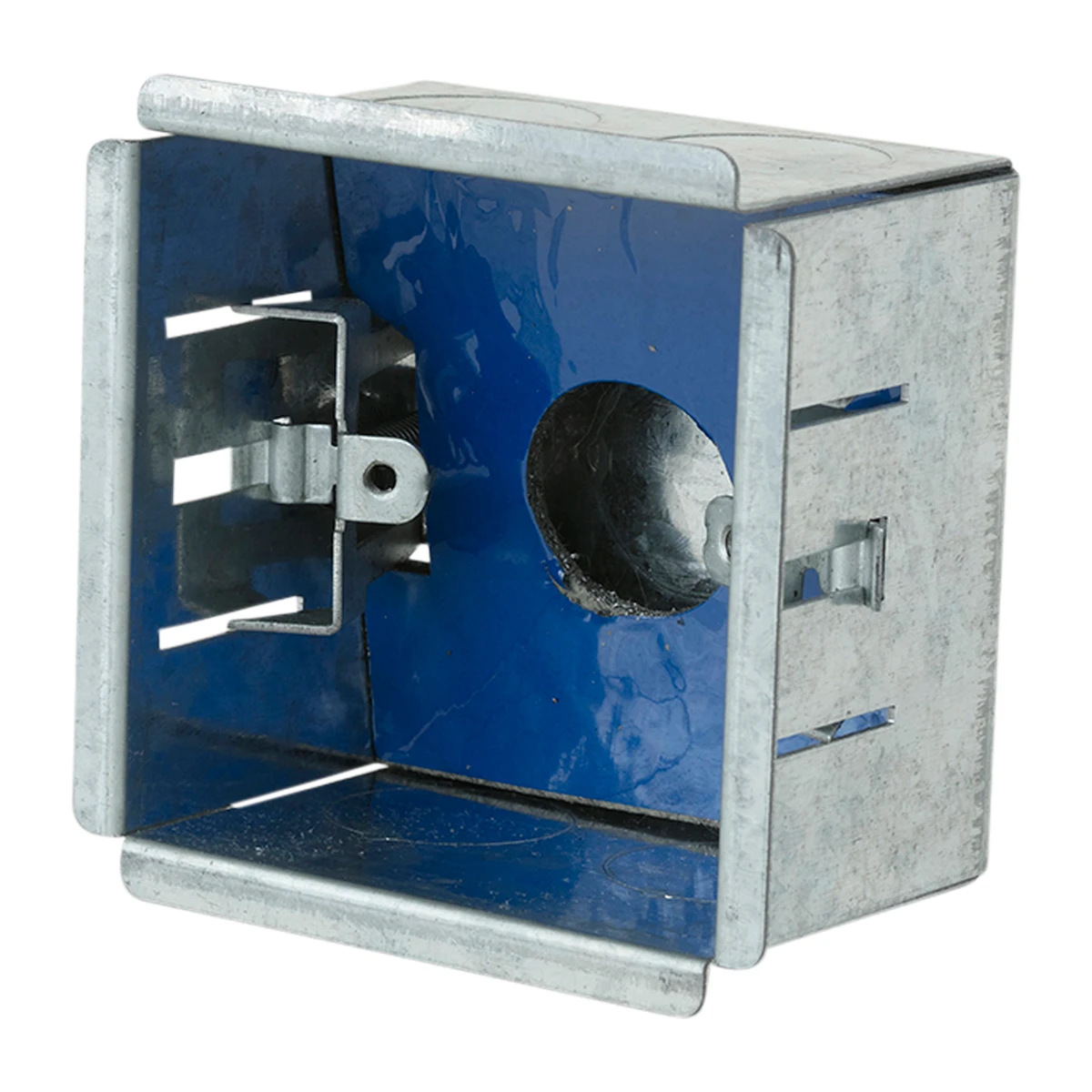

FlameGuard 1-Gang Dry Lining Box 47mm - Image 2

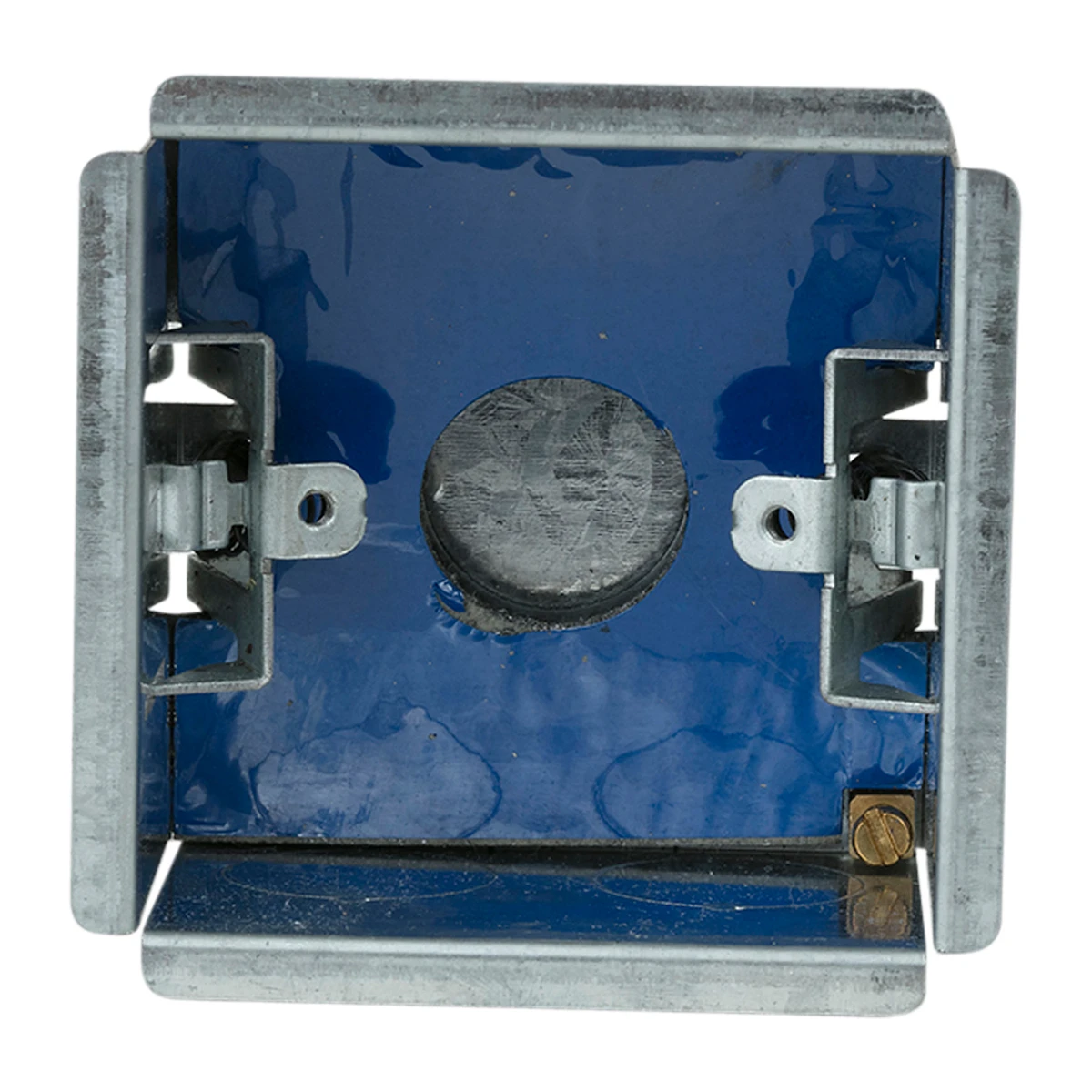

FlameGuard 1-Gang Dry Lining Box 47mm - Image 3
FlameGuard 1-Gang Dry Lining Box 47mm - Image 4

FlameGuard 1-Gang Dry Lining Box 47mm

£17.18 Incl. VAT

Scolmore FlameGuard dry lining box is made of metal. The intumescent layer within the box expands as the temperature increases filling the metal box cavity. · · · Cutout size: 73 x 73mm · · BSEN 1364-1:1999 – Fire resistance · · BSEN ISO 140-3: 1995 Acoustic

263 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: WA4147 Categories: , , Brand: Part Number: 2500296178

Description

Technical Specifications  Technical Specifications Flush mounted box/housing Colour Grey Number of entry points 5 Material Steel Number of included spouts 0 Number of poles of the clamp 0 Internal depth 47 mm Depth 47 – 47 mm Width 82 mm Suitable for cable outer diameter 1 – 15 mm Suitable for wall/board thickness 5 – 30 mm Housing feed-through by seal membrane No Pipe locking optional No With fixing lugs No Clamp position fixed No Provided with revolving ring No Housing feed-through by step membrane No Housing feed-through by break-out opening No Transparent cover No Housing feed-through by nozzle No Sealable No With screws No Airtight No With screening No Pipe locking No Entry point on rear No Couplable No Halogen free No Luminaire hook mounting No · Technical Data Sheet – Click to Download
