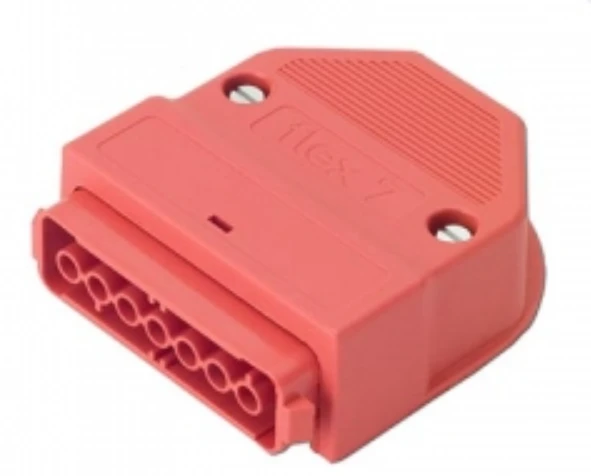

flex7 Red 7-Pole Single Socket Outlet

Complementing flex7 range of Lighting Distribution Boxes, Single Socket Outlets are ideal where only one outlet is required. Available in 3, 4, 5 and 6-pole for applications requiring standard or emergency lighting connection and 7-pole where additional connections are required e.g. dimming. Sockets can mount directly to a round conduit box (50.8mm centre) using the 2 captive M4 screws provided, or order the trunking mount version if fitting to trunking, cable basket or tray. Large terminals, all in line, and a cover that fits last means that termination is particularly easy. Unlike similar products the conductors don’t need to be forced back into the conduit box and instead are easily accommodated underneath the spacious cover. · · · Outlets rated 16A 230V. · · Terminals accept 1×10.00mm, 2×4.00mm, 3×2.5mm, conductors. · · Mount to a conduit box screws (screws supplied) or to trunking, cable basket or tray. · · Integral inline plug provides secure linkage to the inline outlet of the preceding unit.
