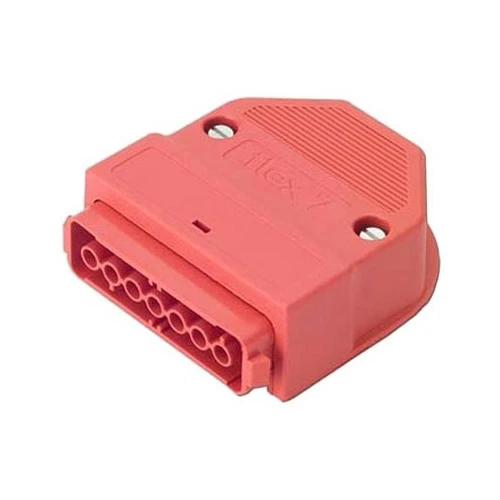

flex7 Socket Single Standard 4-Pole+Loop 16A 2 x 4.00mm Red

Flex7 Single Socket Outlet is typically for dimmable luminaires. It is ideal where only one outlet is required. Available in 3, 4, 5 and 6-pole for applications requiring standard or emergency lighting connection and 7-pole where additional connections are required e.g. dimming. Sockets can mount directly to a round conduit box (50.8mm centre) using the 2 captive M4 screws provided, or order the trunking mount version if fitting to trunking, cable basket or tray. Large terminals, all in line, and a cover that fits last means that termination is particularly easy. Unlike similar products the conductors don’t need to be forced back into the conduit box and instead are easily accommodated underneath the spacious cover. · · · Outlets rated 16A 230V · · Mount to a conduit box screws · · Integral inline plug provides secure linkage to the inline outlet of the preceding unit · · Simple to wire with easy access for power screwdriver · · For non-dimmable emergency luminaires
