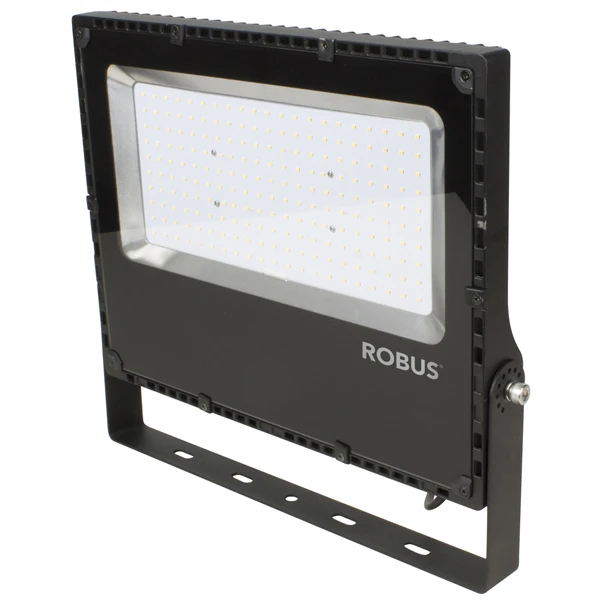

Floodlight Champion LED 4000K IP65 150W Black

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Degree of protection (IP), front side IP65 Housing colour Black Width 488 mm Rated luminous flux acc. IEC 62722-2-1 – lm Power factor 0.97 Rated life time L70/B50 at 25 °C 50000 h Number of lamps – Recess width – mm Luminous intensity – cd Conductor cross section – mm² Luminaire efficacy 143 lm/W Total harmonic distortion 10.5 Recess height/depth – mm Maximum system power 127 W Unified Glare Rating (UGR) 31.2 Number of poles – Recess length – mm Height/depth 60 mm Outer diameter – mm Length 418 mm Lamp power – – – W Nominal voltage 220 – 240 V Colour temperature 4000 – 4000 K Connectable conductor cross section – – – mm² Luminous flux 18110 – 18110 lm Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Luminaire may be covered with thermally insulating material No Suitable for ceiling mounting No Suitable for surface mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No With movement sensor No With light sensor No Suitable for suspended mounting No Control gear included No Suitable for traverse mounting No Brushed surface No Fit for workplace acc. EN 12464-1 No Suitable for clamp-mounting No Suitable for pedestal/floor mounting No Suitable for recessed mounting No Light source included No Dimming RF No Dimming 0-10 V No Dimming mains voltage modulation No Dimming manufacturer’s proprietary system No Dimming Zigbee No Dimming DMX No Dimming DALI No Dimming DSI No Dimming trailing edge No Dimming LineSwitch No Dimming potentiometer (integrated) No Dimming 1-10 V No Suitable for light-track mounting No Suitable for low voltage cable system No Dimming programmable No Dimming with push-button No Dimming sine wave reduction No Dimming leading edge No No dimming function Yes Dimming touch and dim No · Technical Data Sheet – Click to Download
