Description

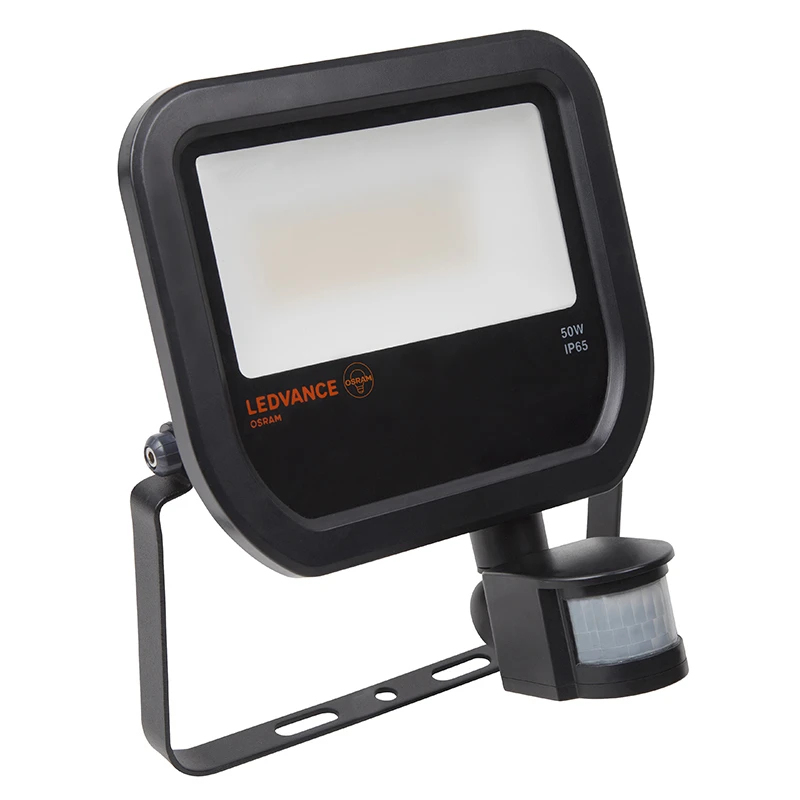

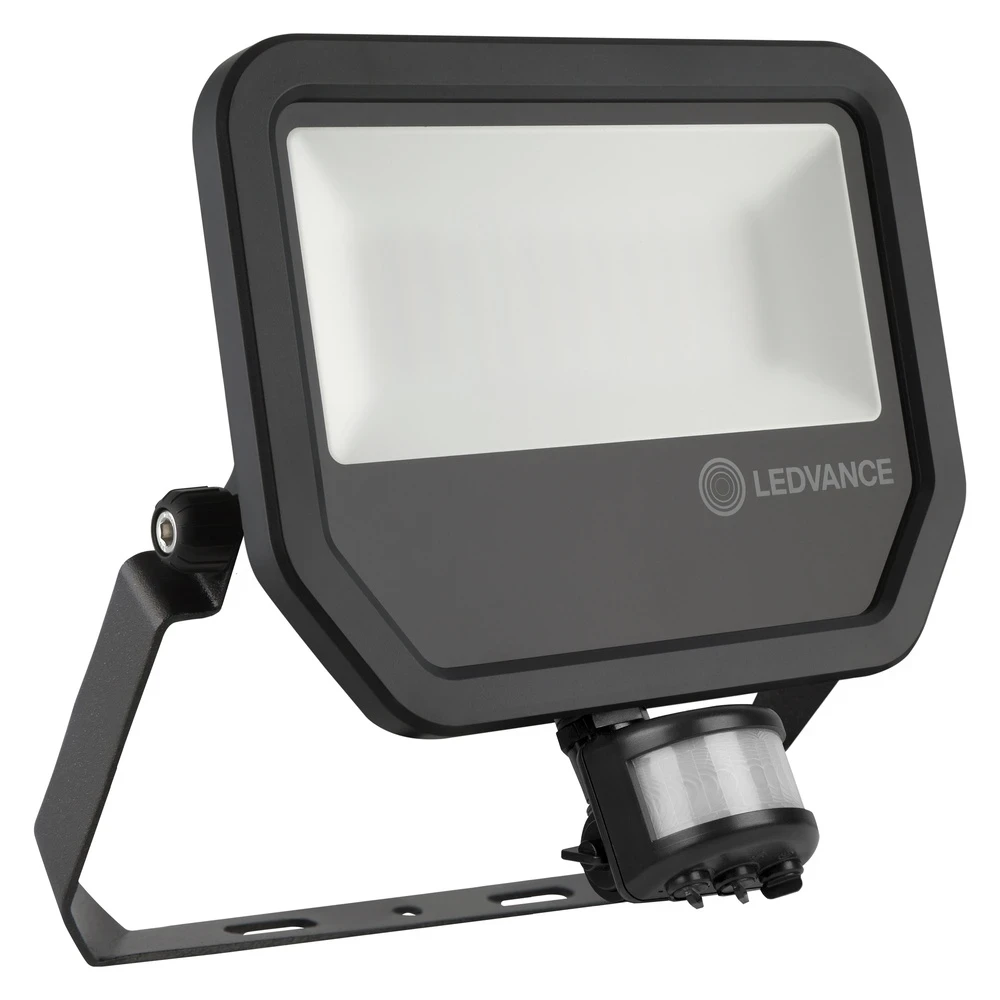

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Light diffuser type Reflector Control gear Electronic ballast Lamp cap/base None Photobiological safety according to EN 62471 RG1 Housing colour Black Type of cabling Ending Colour rendering index (CRI/Ra) 80-89 Impact resistance (IK rating) IK07 Reflector Matt Lumen setting adjustable No Light distribution Symmetric Beam angle adjustable No Colour temperature switchable No Protection class according to IEC 61140 I Surface protection Powder coated Colour of light White Colour consistency (McAdam ellipse) SDCM5 Connection type Screwless terminal Degree of protection (IP rating) IP65 Light source type LED non-replaceable Adjustability Swivelling Energy efficiency class of light source according to EU regulation 2019/2015 E Housing material Aluminium Light outlet Direct Voltage type AC Width 219 mm Rated luminous flux acc. IEC 62722-2-1 6000 lm Length 225 mm Luminous intensity – cd Rated life time L70/B50 at 25 °C 70000 h Power factor 0.9 Max. number of luminaires per miniature circuit breaker B16 35 Maximum system power 50 W Recess height/depth – mm Luminaire efficacy 120 lm/W Flickering value Pst LM – Unified Glare Rating (UGR) – Stroboscope effect value SVM – Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Max. number of luminaires per miniature circuit breaker C16 41 Total harmonic distortion – Number of lamps 0 Recess length – mm Recess width – mm Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) – % Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Outer diameter – mm Conductor cross section – mm² Number of poles 3 Height/depth 59 mm Lamp power – W Nominal voltage 100 – 277 V Colour temperature 4000 – 4000 K Connectable conductor cross section – mm² Nominal current 248 – 248 mA Rated ambient temperature acc. IEC62722-2-1 -30 – 50 °C Luminous flux 6000 – 6000 lm Cut-out diameter – mm Suitable for suspended mounting No With light sensor Yes With movement sensor Yes Suitable for wall mounting Yes Light source included Yes Suitable for surface mounting Yes Suitable for wall mounting Yes Suitable for ceiling mounting No Suitable for recessed mounting No IFTTT support available Yes Control gear included Yes Brushed surface No Suitable for traverse mounting No Suitable for pedestal/floor mounting No Suitable for light-track mounting No Suitable for clamp-mounting No Emergency power supply integrated No Constant luminous flux control No Bluetooth operated No Luminaire may be covered with thermally insulating material No Suitable for low voltage cable system No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Dimming DALI-2 No Fit for workplace acc. EN 12464-1 No Dimming 1-10 V No Replaceable control gear No Dimming 0-10 V No Dimming DMX No Dimming DALI No Dimming potentiometer (integrated) No Dimming DSI No Dimming sine wave reduction No Dimming RF No Dimming programmable No Dimming leading edge No Dimming mains voltage modulation No Dimming trailing edge No Dimming LineSwitch No Dimming manufacturer’s proprietary system No Compatible with Google Assistant No Compatible with Amazon Alexa No Compatible with Apple HomeKit No Dimming Zigbee No Dimming touch and dim No No dimming function Yes Dimming with push-button No
