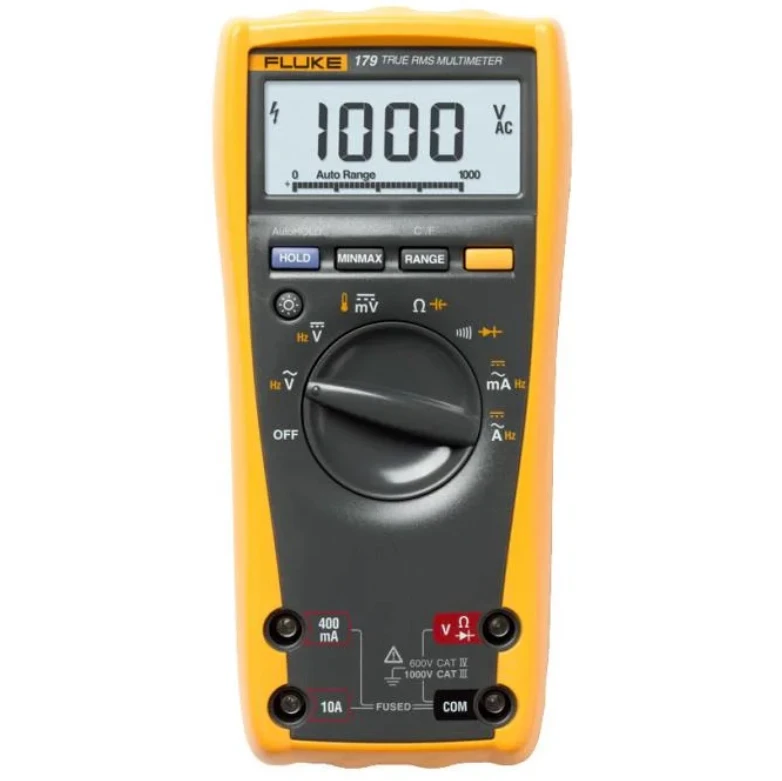

Fluke Multimeter 179 Digital Yellow/Black

Description

Technical Specifications  Technical Specifications Multimeter Circuit category measurement CAT IV Lowest resolution- Resistance 0.1 Ohm Lowest resolution- AC current 10 µA Lowest resolution- DC current 10 µA Lowest resolution- AC voltage 0.1 mV Indication Digital Lowest resolution- DC voltage 0.1 mV Lowest resolution- Temperature 0.1 °C Lowest resolution- Capacitance 0.001 µF Max. temperature measuring range 400 °C Max. voltage measuring circuit category 600 V Max. current measuring range, DC 10 A Max. voltage measuring range, AC 1000 V Max. voltage measuring range, DC 1000 V Max. current measuring range, AC 10 A Lowest resolution- Frequency 0.01 Hz Measurement range selection Manual/automatic Max. resistance measuring range 50 M Ohm Max. frequency measuring range 99.99 kHz Max. capacitance measuring range 9999 µF Insulation resistance measuring range – M Ohm Interface No Continuity test Yes Bluetooth interface No Measured value memory No Temperature measurement RTD No Low resistance measurement (4-wire Kelvin connection) No Maximum value storage Yes Resistance (diode) test Yes Analogue bargraph display analogue/logarithmical Yes Explosion-tested version No Infrared Interface (IR) No Data hold Yes Nominal test voltage 10 V No Nominal test voltage 50 V No Nominal test voltage 100 V No Nominal test voltage 250 V No Frequency measurement Yes Capacitance measurement Yes TRMS measurement Yes Inductance measurement No Cable length measurement No Nominal test voltage 1000 V No Nominal test voltage 500 V No Conductivity measurement No Sound level measurement (dB) No Multiple display No Analogue bar graph display Yes Cable symmetry testing for two wire connections a-b-E No Power and energy measurement No Harmonics analysis/power quality analysis No Relative value measurement No Peak value memory No Duty cycle measurements No Rotational speed measurement No Automatic circuit breaker No Temperature measurement TC Yes Min. value storage Yes · Technical Data Sheet – Click to Download
