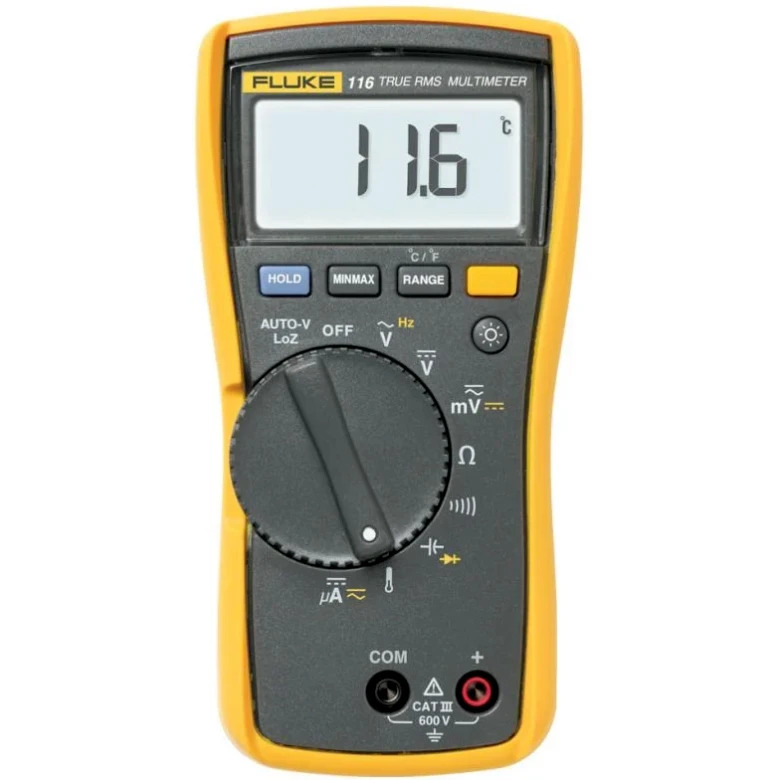

Fluke Digital Multimeter True RMS Hvac Temperature&Micro Amps

Description

Technical Specifications  Technical Specifications Multimeter Circuit category measurement CAT III Indication Digital Lowest resolution- Capacitance 0.001 µF Lowest resolution- AC voltage 0.1 mV Lowest resolution- DC voltage 0.1 mV Lowest resolution- AC current 0.1 µA Lowest resolution- Resistance 0.1 Ohm Lowest resolution- Temperature 0.1 °C Lowest resolution- DC current 0.1 µA Lowest resolution- Frequency 0.01 Hz Measurement range selection Manual/automatic Max. voltage measuring range, DC 600 V Max. current measuring range, DC 0 A Max. resistance measuring range 40 M Ohm Max. temperature measuring range 400 °C Max. frequency measuring range 50 kHz Max. voltage measuring circuit category 600 V Max. current measuring range, AC 0 A Max. capacitance measuring range 9999 µF Insulation resistance measuring range – M Ohm Bluetooth interface No Infrared Interface (IR) No Data hold Yes Explosion-tested version No Sound level measurement (dB) No Inductance measurement No Conductivity measurement No Resistance (diode) test Yes Max. voltage measuring range, AC 600 V Nominal test voltage 100 V No Maximum value storage Yes Low resistance measurement (4-wire Kelvin connection) No Temperature measurement RTD No Nominal test voltage 10 V No Nominal test voltage 50 V No Cable length measurement No Cable symmetry testing for two wire connections a-b-E No Power and energy measurement No Harmonics analysis/power quality analysis No Relative value measurement No Peak value memory No Duty cycle measurements No Rotational speed measurement No Automatic circuit breaker No Temperature measurement TC Yes Min. value storage Yes Measured value memory No Interface No Frequency measurement Yes Multiple display No Capacitance measurement Yes Continuity test Yes TRMS measurement Yes Nominal test voltage 250 V No Nominal test voltage 500 V No Nominal test voltage 1000 V No · Technical Data Sheet – Click to Download
