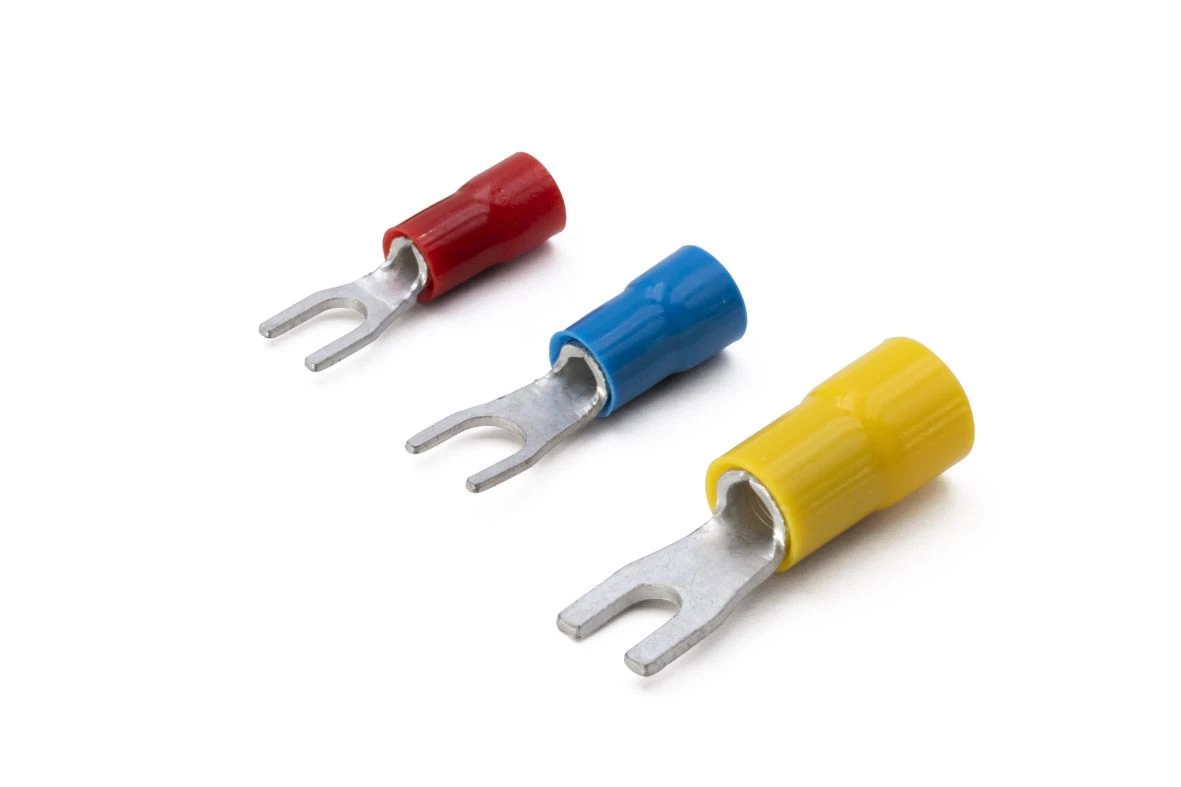

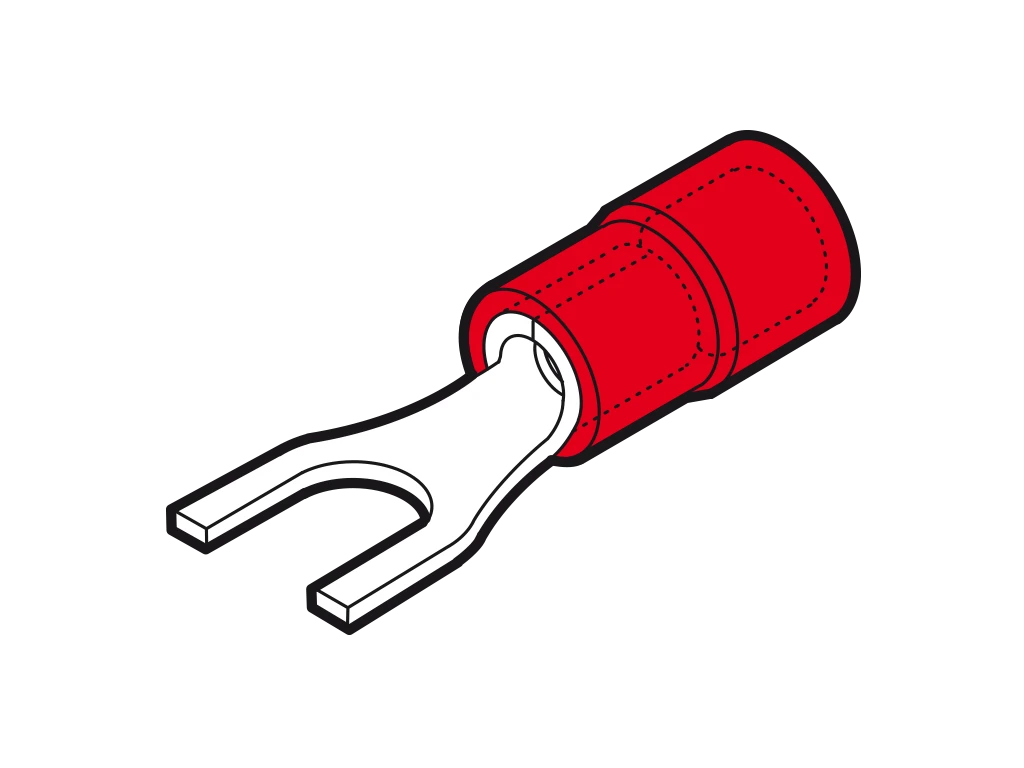

Fork Terminal Red
Fork Terminal Red
Fork Terminal Red - Image 2
Fork Terminal Red - Image 3
Fork Terminal Red - Image 4

Fork Terminal Red

£0.06 Incl. VAT

0.25mm²-1.5mm² PVC insulated fork terminal 4.3mm fork width red · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Diameter: 3.9 mm · · Length Min Max: 21.3 mm · · CE Approved: Y · · Standards: UL (Canada and US) UL 498A EN 1652

1100 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RF-U4 Categories: , , Brand: Part Number: 2500162531

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Material Copper Insulation Polyvinyl chloride (PVC) Sleeve form Short For pull protected connections No Nominal cross section 0.25 – 1.5 mm² AWG-range 22 – 16 Bolt dimension (metric) 4 Max. current (Imax) – A Colour insulation Red Flange shape Fork shape Surface protection Tinned Reel packaging No According to DIN No Suitable for round conductors Yes Suitable for flat conductors No Useful for stranded conductors Yes Suitable for solid cores No Suitable for fine strand conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for insulated varnish No
