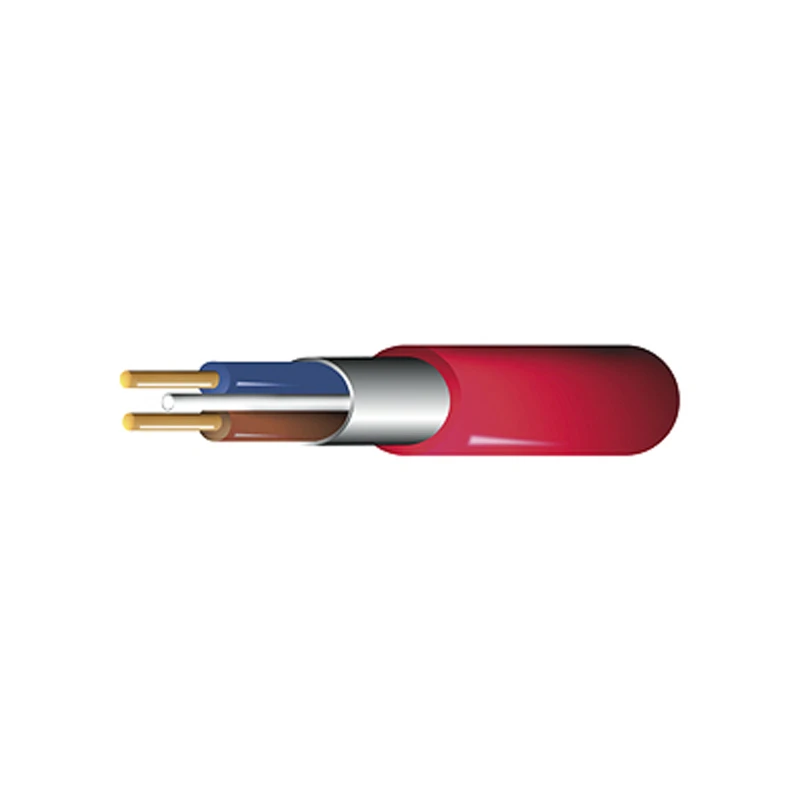

Prysmian FP200G2C 1.5mm² Red Fire Performance Soft Skin Standard Cable 2-Core
£438.24 Incl. VAT
Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards · · · Fire detection and fire alarm systems for buildings. · · Voice alarm systems and emergency voice communication. · · Emergency and escape lighting. · · Control circuits for life safety and fire fighting systems. · · Other essential service control circuits for “Standard” fire resistance. · · Diameter: 8.1mm · · Number of Cores: 2 Core · · Operating Temperature: -20 to 70°C
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Core colour Several Conductor category Class 1 = solid Conductor material Copper Sheath colour Red Conductor surface Bare Sheath material Polyolefin Core insulation material Polyolefin Nominal cross sectional area of conductor 1.5 mm² Core identification Colour Nominal voltage U0 300 V Nominal voltage U 500 V Number of cores 2 Max. conductor temperature 70 °C Outer diameter approx. 7.9 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Drain wire Yes Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen Yes · Technical Data Sheet – Click to Download
