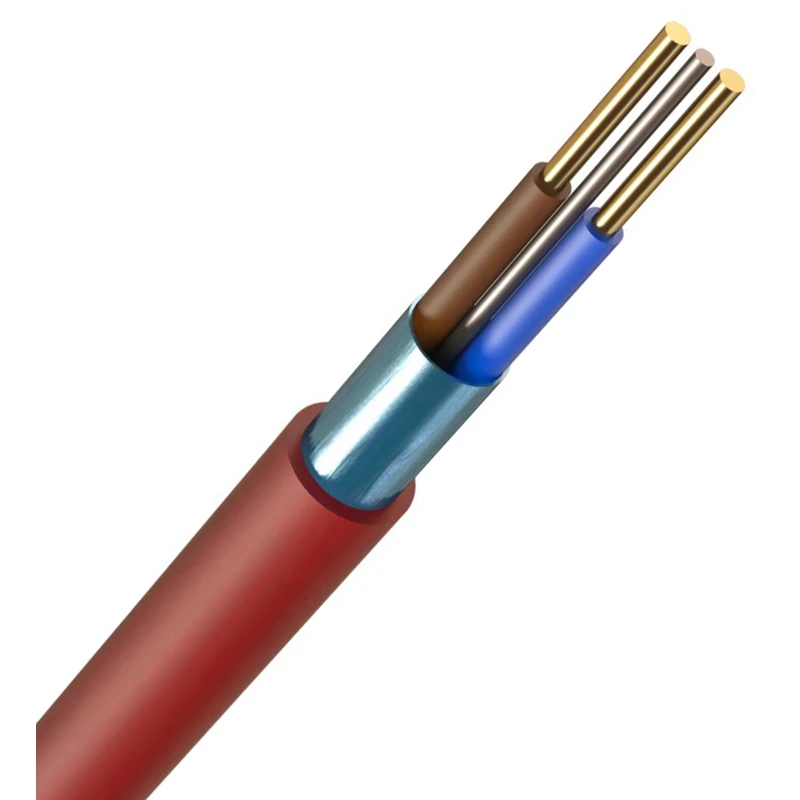

Prysmian FP200G2C 2.5mm² Red Fire Performance Soft Skin Standard Cable 2-Core
£401.28 Incl. VAT
Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards · · · Robust thermoplastic LSOH sheath · · Laminated aluminium tape bonded to sheath · · High performance damage resistant Insudite insulation · · Plain annealed solid copper conductors 1.0mm – 2.5mm · · Plain annealed stranded copper conductors for 4.0mm
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Core colour Several Protective barrier None Conductor material Copper Conductor category Class 1 = solid Conductor surface Bare Sheath colour Red Sheath material Polyolefin Core insulation material Polyolefin Core identification Colour Conductor Diameter 2.5 mm Nominal cross sectional area of conductor 2.5 mm² Nominal voltage U 500 V Nominal voltage U0 300 V Max. conductor temperature 70 °C Outer diameter approx. 9.5 mm Number of cores 2 Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen Yes Drain wire Yes · Technical Data Sheet – Click to Download
