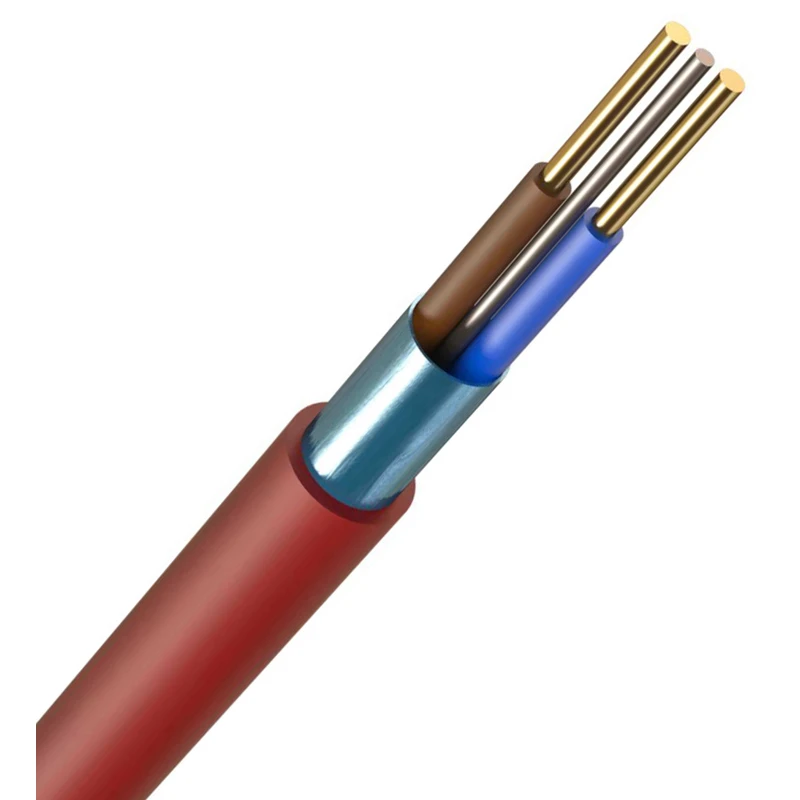

Prysmian FP200G2C 4.0mm² Red Fire Performance Soft Skin Standard Cable 2-Core
£676.20 Incl. VAT
Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards · · · Fire detection and fire alarm systems for buildings. · · Voice alarm systems and emergency voice communication. · · Emergency and escape lighting. · · Control circuits for life safety and fire fighting systems. · · Other essential service control circuits for “Standard” fire resistance.
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Core colour Several Conductor category Class 2 = stranded Sheath colour Red Conductor material Copper Sheath material Polyolefin Conductor surface Bare Core insulation material Polyolefin Core identification Colour Outer diameter approx. 11.6 mm Conductor Diameter 4 mm Nominal voltage U0 300 V Number of cores 2 Max. conductor temperature 70 °C Nominal cross sectional area of conductor 4 mm² Nominal voltage U 500 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Drain wire Yes Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen Yes · Technical Data Sheet – Click to Download
