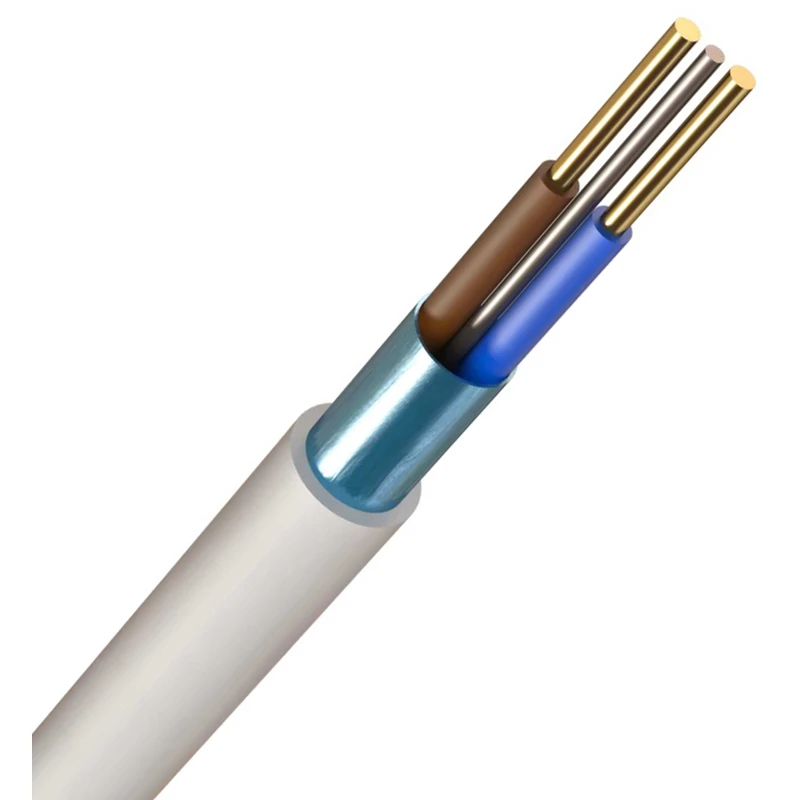

Prysmian FP200G2C 4.0mm² White Fire Performance Soft Skin Standard Cable 2-Core
Prysmian FP200G2C 4.0mm² White Fire Performance Soft Skin Standard Cable 2-Core
Prysmian FP200G2C 4.0mm² White Fire Performance Soft Skin Standard Cable 2-Core - Image 2
Prysmian FP200G2C 4.0mm² White Fire Performance Soft Skin Standard Cable 2-Core - Image 3
Prysmian FP200G2C 4.0mm² White Fire Performance Soft Skin Standard Cable 2-Core - Image 4

Prysmian FP200G2C 4.0mm² White Fire Performance Soft Skin Standard Cable 2-Core

Pack of 100

£646.80 Incl. VAT

Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards · · · Robust thermoplastic LSOH sheath · · Laminated aluminium tape bonded to sheath · · High performance damage resistant Insudite insulation · · Plain annealed solid copper conductors 1.0mm – 2.5mm · · Plain annealed stranded copper conductors for 4.0mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20145391 Categories: , , Brand: Product Code: 2500043032

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Core colour Several Conductor category Class 2 = stranded Conductor material Copper Sheath colour White Conductor surface Bare Sheath material Polyolefin Core insulation material Polyolefin Core identification Colour Number of cores 2 Nominal cross sectional area of conductor 4 mm² Nominal voltage U 500 V Nominal voltage U0 300 V Outer diameter approx. 11.6 mm Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Screen Yes Drain wire Yes · Technical Data Sheet – Click to Download
