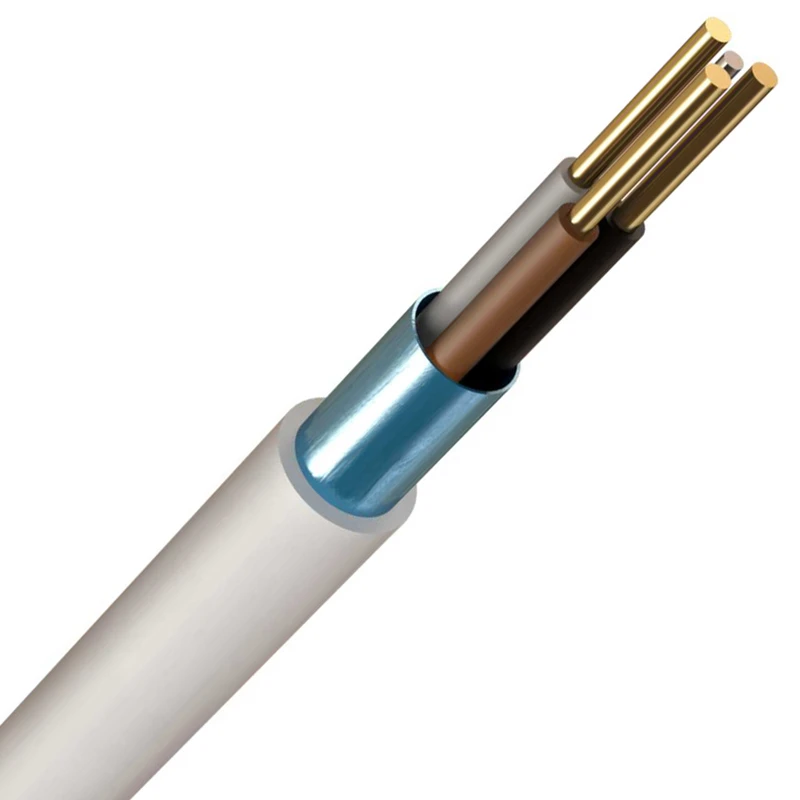

FP200G3C 1.5mm² White Fire Performance Soft Skin Standard Cable 3-Core
FP200G3C 1.5mm² White Fire Performance Soft Skin Standard Cable 3-Core
FP200G3C 1.5mm² White Fire Performance Soft Skin Standard Cable 3-Core - Image 2
FP200G3C 1.5mm² White Fire Performance Soft Skin Standard Cable 3-Core - Image 3
FP200G3C 1.5mm² White Fire Performance Soft Skin Standard Cable 3-Core - Image 4

FP200G3C 1.5mm² White Fire Performance Soft Skin Standard Cable 3-Core

£360.00 Incl. VAT

Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards · · · Robust thermoplastic LSOH sheath · · Laminated aluminium tape bonded to sheath · · High performance damage resistant Insudite insulation · · Plain annealed solid copper conductors 1.0mm – 2.5mm · · Plain annealed stranded copper conductors for 4.0mm

Minimum order: 100 units.

3200 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: FP200G3C-1.5-WHI100 PRYS Categories: , , , Brand: Part Number: 2500055821

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 1 = solid Core colour Several Protective barrier None Max. conductor temperature 70 °C Nominal cross sectional area of conductor 1.5 mm² Conductor surface Bare Sheath material Polyolefin Core insulation material Polyolefin Core identification Colour Conductor material Copper Sheath colour White Outer diameter approx. 8.5 mm Number of cores 3 Nominal voltage U0 300 V Nominal voltage U 500 V Permitted cable outer temperature during assembling/handling 0 - 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen Yes Drain wire Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
