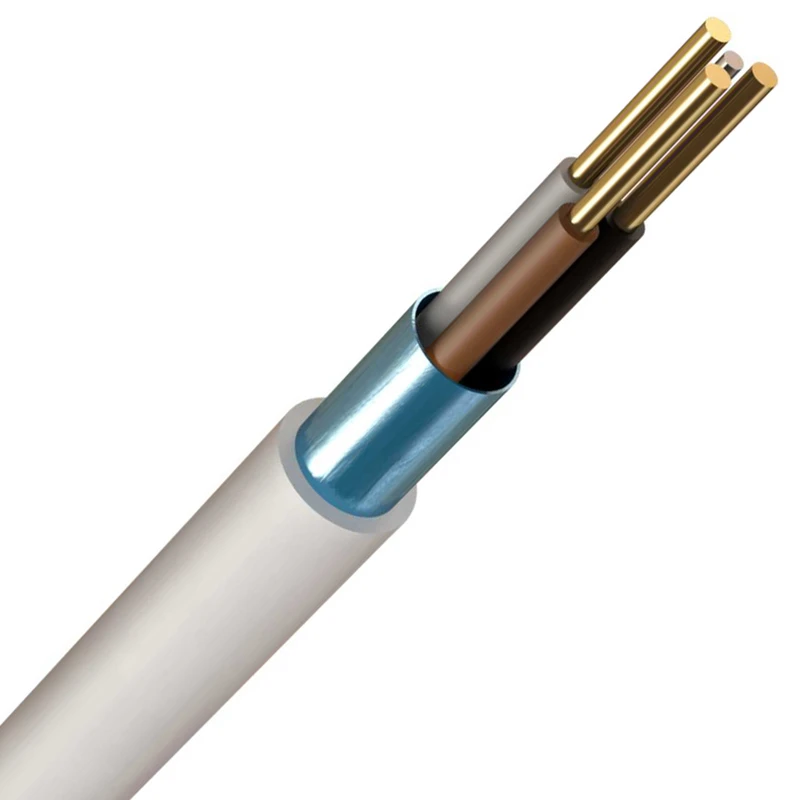

FP200G3C 2.5mm² White Fire Performance Soft Skin Standard Cable 3-Core
FP200G3C 2.5mm² White Fire Performance Soft Skin Standard Cable 3-Core
FP200G3C 2.5mm² White Fire Performance Soft Skin Standard Cable 3-Core - Image 2
FP200G3C 2.5mm² White Fire Performance Soft Skin Standard Cable 3-Core - Image 3
FP200G3C 2.5mm² White Fire Performance Soft Skin Standard Cable 3-Core - Image 4

FP200G3C 2.5mm² White Fire Performance Soft Skin Standard Cable 3-Core

£514.74 Incl. VAT

Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards · · · Fire detection and fire alarm systems for buildings. · · Voice alarm systems and emergency voice communication. · · Emergency and escape lighting. · · Control circuits for life safety and fire fighting systems. · · Other essential service control circuits for “Standard” fire resistance.

1400 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20145451 Categories: , , Brand: Part Number: 2500043081

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 1 = solid Core colour Several Protective barrier None Conductor material Copper Core identification Colour Sheath colour White Conductor surface Bare Sheath material Polyolefin Core insulation material Polyolefin Nominal cross sectional area of conductor 2.5 mm² Number of cores 3 Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Permitted cable outer temperature during assembling/handling 0 – 60 °C Outer diameter approx. 10.4 mm Max. conductor temperature 70 °C Nominal voltage U 500 V Nominal voltage U0 300 V Screen Yes Drain wire Yes · Technical Data Sheet – Click to Download
