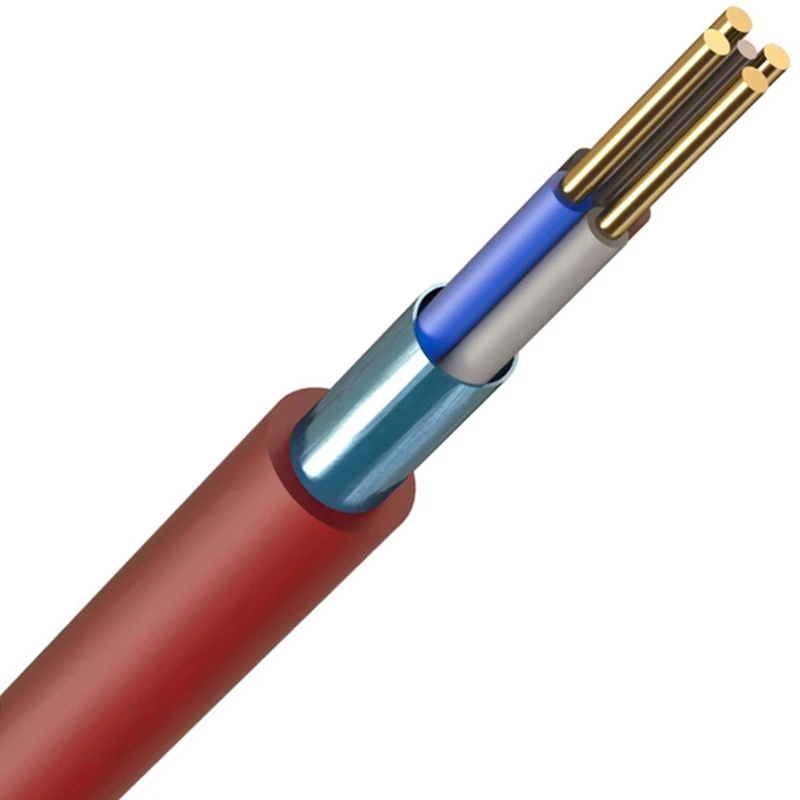

Prysmian FP200G4C 1.5mm² Red Fire Performance Soft Skin Standard Cable 4-Core

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Core colour Several Protective barrier None Conductor material Copper Conductor category Class 1 = solid Conductor surface Bare Sheath colour Red Sheath material Polyolefin Core identification Colour Core insulation material Polyolefin Nominal voltage U 500 V Conductor Diameter 1.5 mm Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U0 300 V Max. conductor temperature 70 °C Outer diameter approx. 10 mm Number of cores 4 Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Screen Yes Oil resistant according to IEC 60811-404 No Drain wire Yes · Technical Data Sheet – Click to Download
