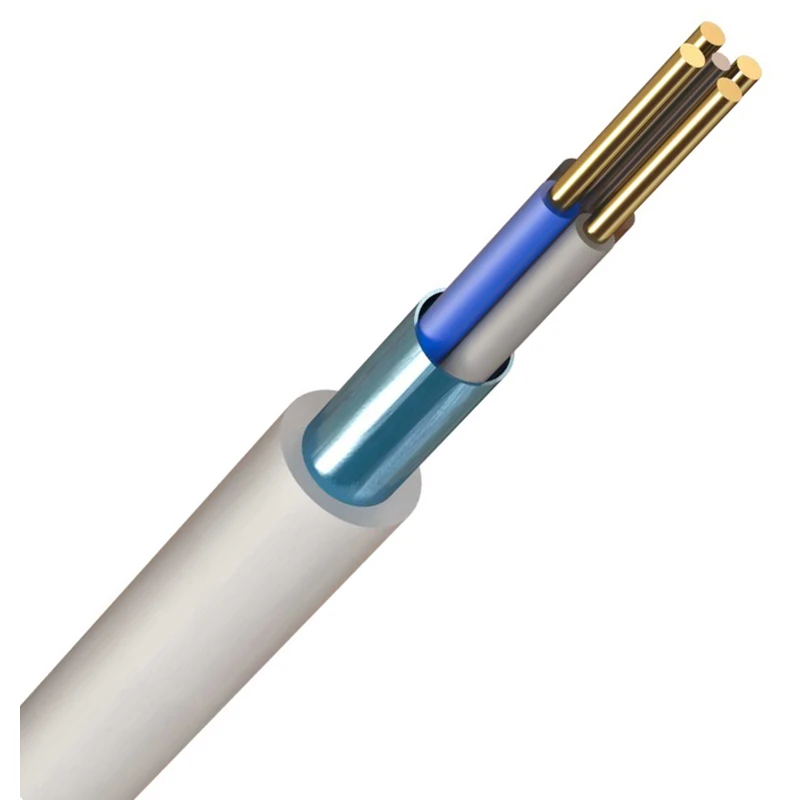

FP200G4C 1.5mm² White Fire Performance Soft Skin Standard Cable 4-Core
FP200G4C 1.5mm² White Fire Performance Soft Skin Standard Cable 4-Core
FP200G4C 1.5mm² White Fire Performance Soft Skin Standard Cable 4-Core - Image 2
FP200G4C 1.5mm² White Fire Performance Soft Skin Standard Cable 4-Core - Image 3
FP200G4C 1.5mm² White Fire Performance Soft Skin Standard Cable 4-Core - Image 4

FP200G4C 1.5mm² White Fire Performance Soft Skin Standard Cable 4-Core

£432.00 Incl. VAT

Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards · · · Robust thermoplastic LSOH sheath · · Laminated aluminium tape bonded to sheath · · High performance damage resistant Insudite insulation · · Plain annealed solid copper conductors 1.0mm – 2.5mm · · Plain annealed stranded copper conductors for 4.0mm

Minimum order: 100 units.

3800 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20145567 Categories: , , Brand: Part Number: 2500043087

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Core colour Several Conductor category Class 1 = solid Conductor material Copper Core identification Colour Sheath colour White Conductor surface Bare Sheath material Polyolefin Core insulation material Polyolefin Nominal voltage U0 300 V Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U 500 V Number of cores 4 Max. conductor temperature 70 °C Outer diameter approx. 10 mm Permitted cable outer temperature during assembling/handling 0 - 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen Yes Drain wire Yes · Technical Data Sheet – Click to Download
