Cable

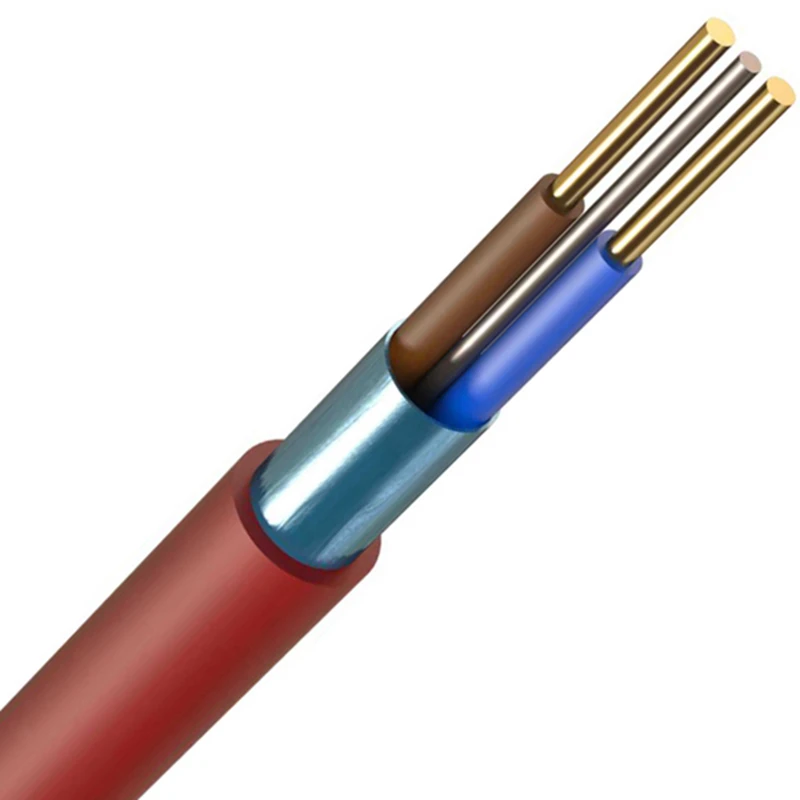

Prysmian FPPLUS2C 1.5mm² Red Fire Performance Soft Skin Enhanced Cable 2-Core
Brand: PrysmianProduct code: FPPLUS2C-1.5-RED100 PRYSGo Magpie Ref: 5060062327699
Prysmian FP PLUS is the ‘Enhanced’, hard skin, dressable fire resistant cable most commonly needed for fire alarm and emergency lighting circuits · · · Robust thermoplastic LSOH sheath · · Laminated aluminium tape bonded to sheath · · Enhanced damage resistant Insudite insulation for higher performance · · Plain annealed solid copper conductors 1.0mm – 2.5mm · · Plain annealed stranded copper conductors for 4.0mm
£352.44inc VAT£293.70 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Core colour Several Conductor material Copper Conductor category Class 1 = solid Sheath colour Red Conductor surface Bare Sheath material Polyolefin Core insulation material Polyolefin Core identification Colour Nominal cross sectional area of conductor 1.5 mm² Outer diameter approx. 9.2 mm Nominal voltage U0 300 V Max. conductor temperature 70 °C Number of cores 2 Conductor Diameter 1.5 mm Nominal voltage U 500 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Screen Yes Drain wire Yes Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
