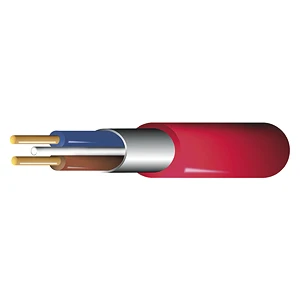

Prysmian FPPLUS2C 1.5mm² Red Fire Performance Soft Skin Enhanced Cable 2-Core

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Core colour Several Conductor material Copper Conductor category Class 1 = solid Sheath colour Red Conductor surface Bare Sheath material Polyolefin Core insulation material Polyolefin Core identification Colour Number of cores 2 Nominal voltage U0 300 V Max. conductor temperature 70 °C Nominal cross sectional area of conductor 1.5 mm² Conductor Diameter 1.5 mm Nominal voltage U 500 V Outer diameter approx. 9.2 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Screen Yes Drain wire Yes · Technical Data Sheet – Click to Download
