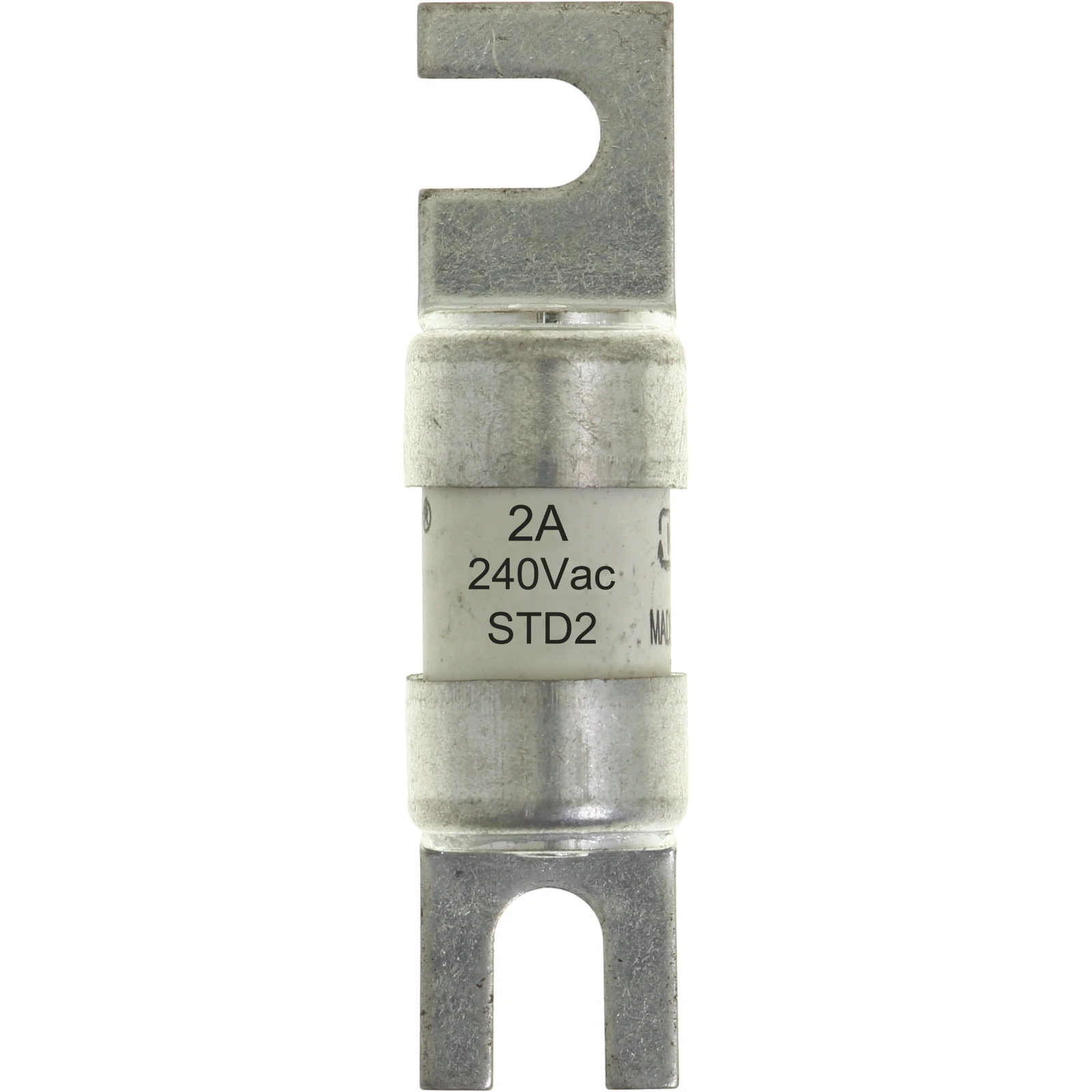

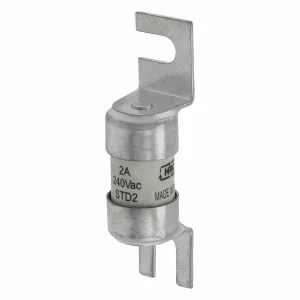

Fuse HRC Offset Bolted Tags BS88 2A
Fuse HRC Offset Bolted Tags BS88 2A
Fuse HRC Offset Bolted Tags BS88 2A - Image 2
Fuse HRC Offset Bolted Tags BS88 2A - Image 3

Fuse HRC Offset Bolted Tags BS88 2A

£19.32 Incl. VAT

Fuse, Fuse-link, low voltage, 2 A, AC 240 V, BS88, 12 x 47 mm, gL/gG, BS, offset bolted tags (slotted), street lighting cut-outs, BS88-1, Breaking Capacity 33 kA · · · Industrial HRC fuse links – type A1 to A4. · · Offset bolted tags up to 550V AC rated. · · 80kA interrupting rating. · · BS 88: Parts 1 + 2 1988. · · IEC 60269-1 and 2. · · Watts loss: 0.5 · · Watts loss: 0.5 · · Light Intensity: 900 – 1400 mcd · · Ambient temperature: -25 to 70°C · · IP20/40 Degree of protection

39 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: STD2 Categories: , , Brand: Part Number: 2500014743

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Utilization category gG (cable protection/equipment protection) Current type AC Mounting holes M4 Breaking capacity 33 kA Rated current 2 A Centre-to-centre distance of connections 35 mm Power loss at rated current 0.5 W Rated voltage AC 240 V · Technical Data Sheet – Click to Download
