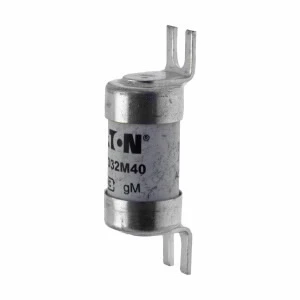

Eaton Fuse HRC Offset Bolted Tags Bs88 32/40A 415V
Eaton Fuse HRC Offset Bolted Tags Bs88 32/40A 415V
Eaton Fuse HRC Offset Bolted Tags Bs88 32/40A 415V - Image 2
Eaton Fuse HRC Offset Bolted Tags Bs88 32/40A 415V - Image 3
Eaton Fuse HRC Offset Bolted Tags Bs88 32/40A 415V - Image 4

Eaton Fuse HRC Offset Bolted Tags Bs88 32/40A 415V

£6.97 Incl. VAT

Bussmann Low Voltage Fuselink with gM class of operation and 80kA breaking capacity. The British standard A1 fuselink is specifically designed for the protection of general industrial applications that is power distribution, cable protection, motor protection. Features 18 x 55mm size, BS88/A1 construction size and is compatible with CM32FC fuse-holders. · · · gM class of operation · · Good peak let-through current limitation · · Power loss values well within the limits of IEC 60269 standards · · 1: 1: 6 Selective coordination ratio between minor and major fuse · · BS88, IEC 60269 standards · · Capacity: 80kA · · Fuse Size: 17.5 x 55mm · · Fuse Standard: BS88, IEC 60269, British · · Diameter: 17.5mm

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NITD32M40 Categories: , , Brand: Product Code: 2500033846

Description

Technical Specifications  Technical Specifications HRC fuse Utilization category gM (motor protection) Type of fuse status indicator None Fuse construction type according to IEC 60269 A1 Fuse system according to IEC 60269 Fuse system E Colour code None Mounting holes M10 Current type AC Centre-to-centre distance of connections 42.5 mm Power loss at rated current 1.9 W Rated voltage AC 415 V Breaking capacity 80 kA Rated current 32 A · Technical Data Sheet – Click to Download
