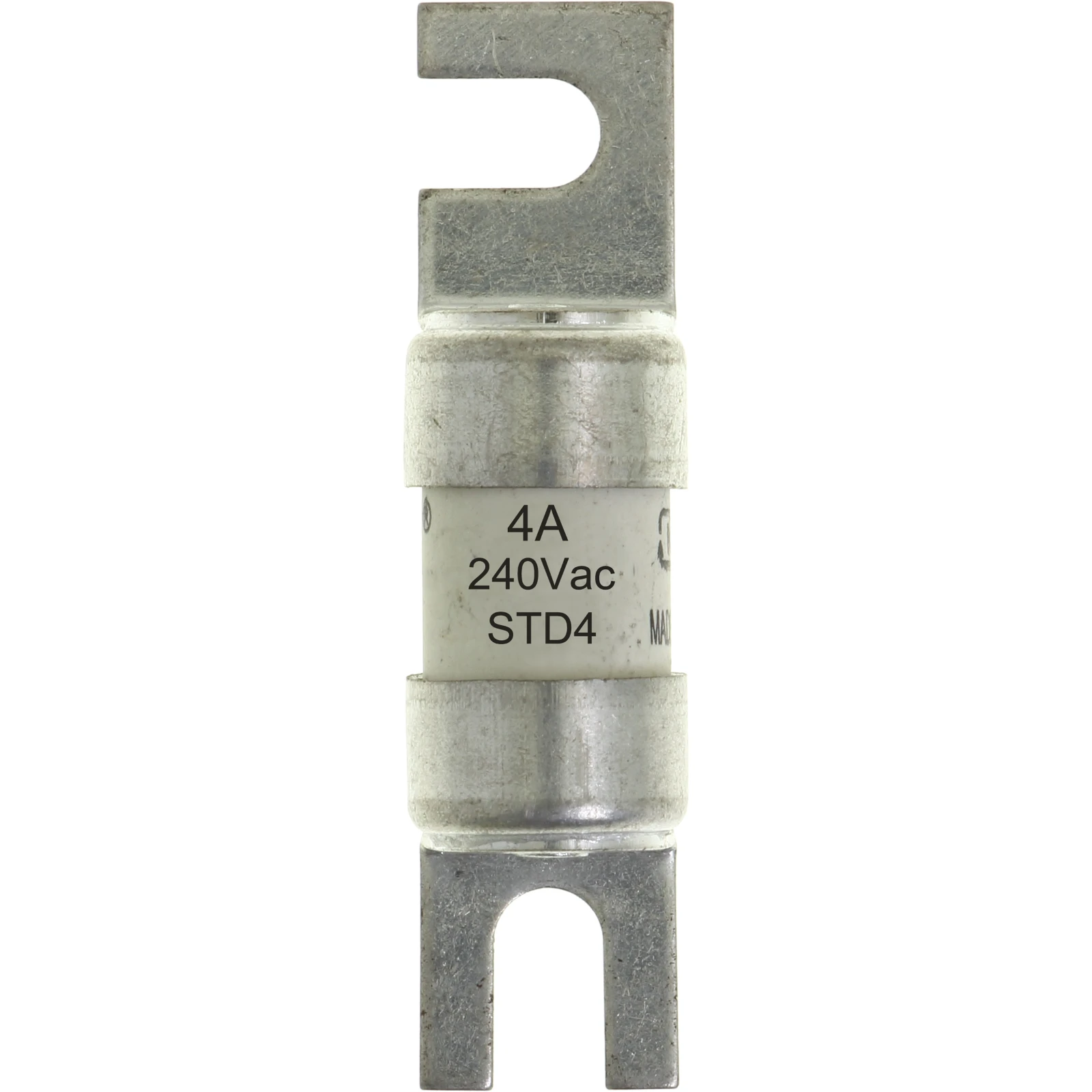

Fuse HRC Offset Bolted Tags BS88 4A
Fuse HRC Offset Bolted Tags BS88 4A
Fuse HRC Offset Bolted Tags BS88 4A - Image 2
Fuse HRC Offset Bolted Tags BS88 4A - Image 3
Fuse HRC Offset Bolted Tags BS88 4A - Image 4

Fuse HRC Offset Bolted Tags BS88 4A

£1.93 Incl. VAT

Fuse, Fuse-link, low voltage, 4 A, AC 240 V, BS88, 12 x 47 mm, gL/gG, BS, offset bolted tags (slotted), street lighting cut-outs, BS88-1, Breaking Capacity 33 kA · · · Good peak let-through current limitation · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · Power loss values within the limits of IEC 60269 · · Pre-arching: 5.5 · · Total at 415V: 8 · · Watts loss: 1 · · Watts loss: 1 · · Ambient temperature: -25 to 70°C

49 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: STD4 Categories: , , Brand: Part Number: 2500014744

Description

Technical Specifications  Technical Specifications HRC fuse Type of fuse status indicator None Colour code None Mounting holes M4 Utilization category gG (cable protection/equipment protection) Current type AC Breaking capacity 33 kA Rated current 4 A Centre-to-centre distance of connections 35 mm Rated voltage AC 240 V Power loss at rated current 1 W · Technical Data Sheet – Click to Download
