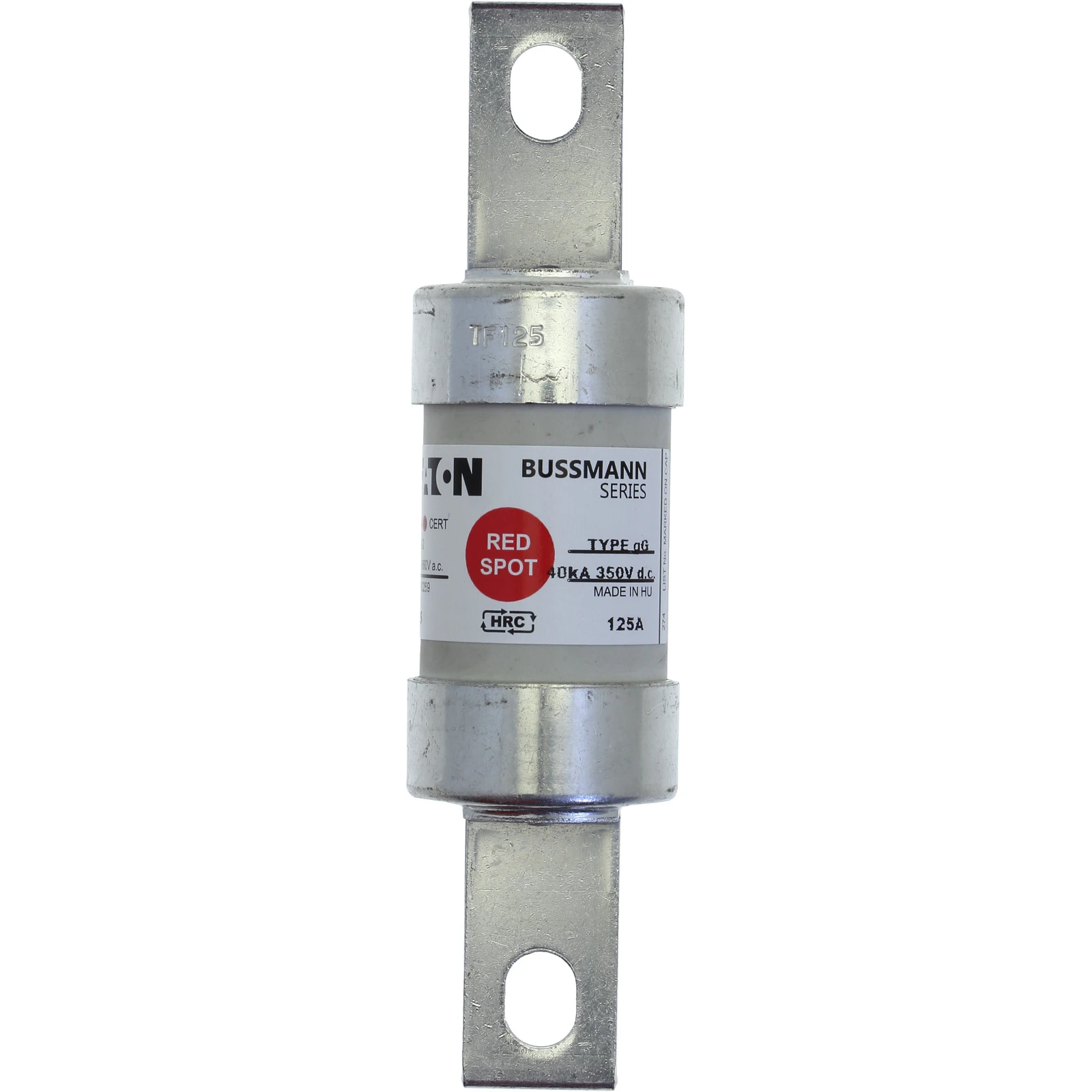

Eaton Fuse Link HRC Central Bolted Tags 125A
Eaton Fuse Link HRC Central Bolted Tags 125A
Eaton Fuse Link HRC Central Bolted Tags 125A - Image 2
Eaton Fuse Link HRC Central Bolted Tags 125A - Image 3
Eaton Fuse Link HRC Central Bolted Tags 125A - Image 4

Eaton Fuse Link HRC Central Bolted Tags 125A

£55.99 Incl. VAT

Red Spot industrial centre bolted tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution and cable protection. · · · BS reference: B2 · · gG characteristics for cable protection · · Good peak and let-through current limitation · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · Power loss values well within the limits of IEC 60269 · · Compatible with Red spot fuse holder 200A RS200 · · Pre-arching: 25 · · Total at rated voltage: 140 · · 111mm fixing centre · · 660-690V AC/350V DC

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TF125 Categories: , , Brand: Product Code: 2500522380

Description

Technical Specifications  Technical Specifications HRC fuse Type of fuse status indicator None Colour code None Fuse system according to IEC 60269 Fuse system E Utilization category gG (cable protection/equipment protection) Fuse construction type according to IEC 60269 B2 Mounting holes M8 Current type AC/DC Rated current 125 A Rated voltage DC 350 V Centre-to-centre distance of connections 111 mm Breaking capacity 80 kA Rated voltage AC 660 V · Technical Data Sheet – Click to Download
