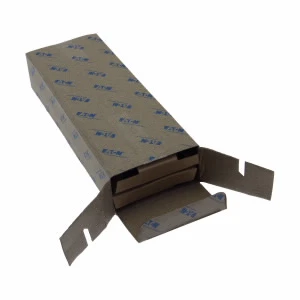

Fuse Link HRC Offset Bolted Tags 32A - Image 3

Fuse Link HRC Offset Bolted Tags 32A

£8.12 Incl. VAT

Red Spot industrial offset bolted tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution and cable protection. · · · BS reference: A2 · · gG characteristics for cable protection · · Good peak and let-through current limitation · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · Power loss values well within the limits of IEC 60269 · · Compatible with Camaster Compact 32A CM32FC and Red Spot fuse holder 32A RS32 · · Pre-arching: 1,080 · · Total at rated voltage: 5,900 · · 73mm fixing centre · · 660-690V AC/460V DC

10 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TIA32 Categories: , , Brand: Part Number: 2500522401

Description

Technical Specifications  Technical Specifications HRC fuse Fuse system according to IEC 60269 Fuse system E Colour code None Type of fuse status indicator None Utilization category gG (cable protection/equipment protection) Fuse construction type according to IEC 60269 A2 Current type AC/DC Rated current 32 A Mounting holes M5 Rated voltage AC 660 V Breaking capacity 80 kA Rated voltage DC 460 V Centre-to-centre distance of connections 73 mm · Technical Data Sheet – Click to Download
