Fusegear

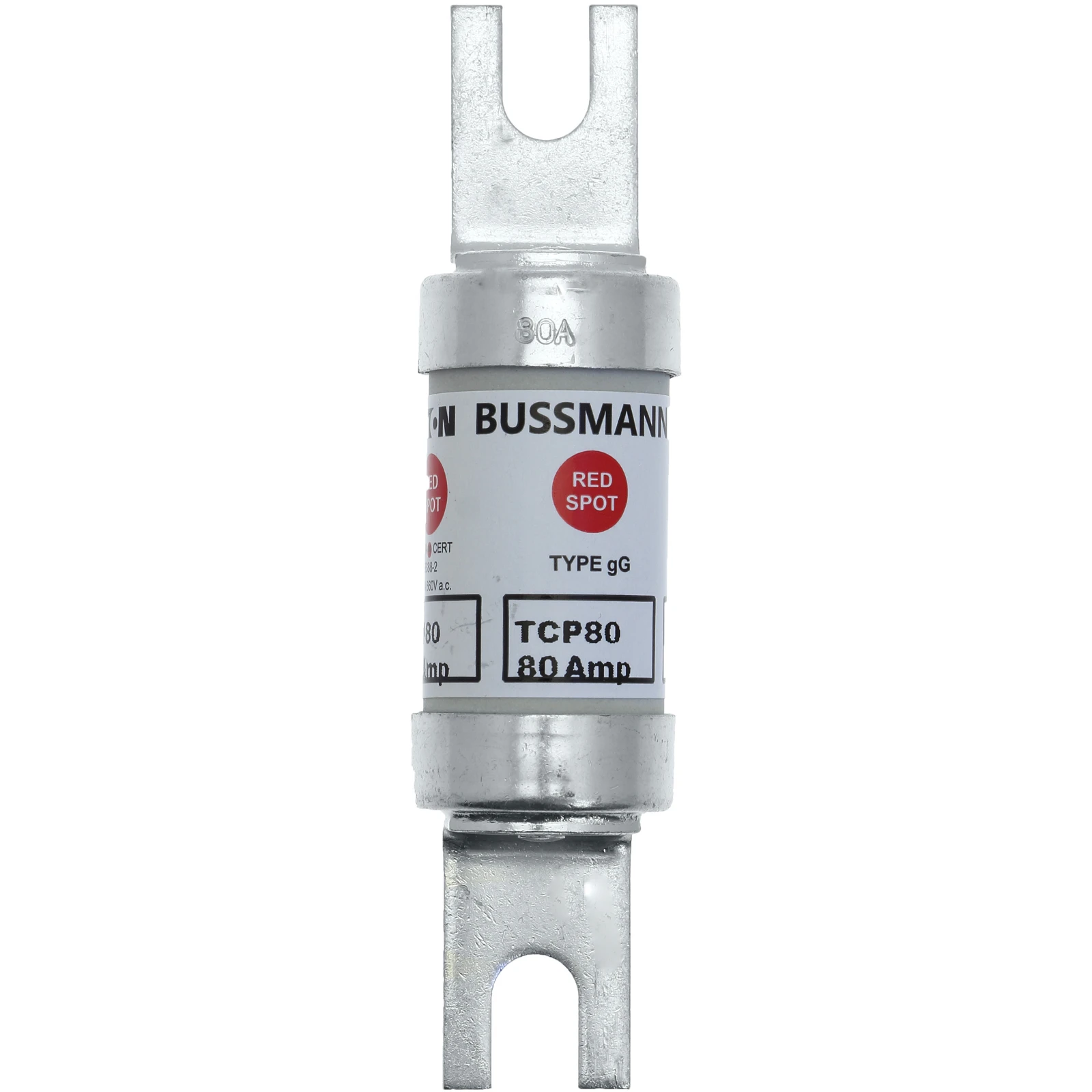

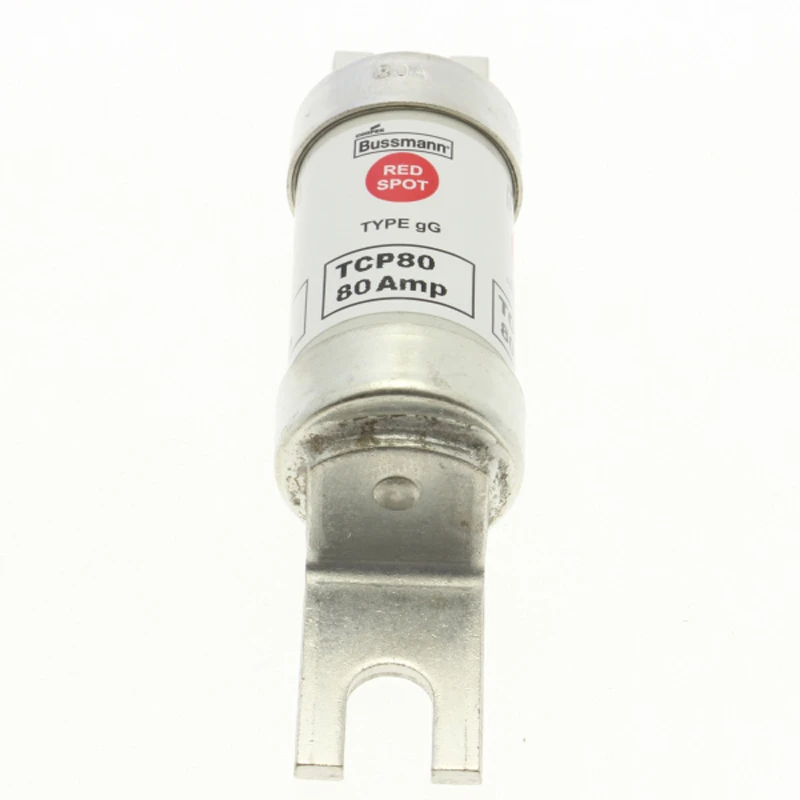

Eaton Fuse Link HRC Offset Bolted Tags 80A

Brand: EatonProduct code: TCP80Go Magpie Ref: 5060062354830

Red Spot industrial offset bolted tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution and cable protection. · · · BS reference: A4 · · gG characteristics for cable protection · · Good peak let-through current limitation · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · Power loss values within the limits of IEC 60269 · · Compatible with Red Spot fuse holder 100A RS100 · · Pre-arching: 14,000 · · Total at rated voltage: 66,000 · · 94mm fixing centre · · 660-690V AC/350V DC

£32.60inc VAT£27.17 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications HRC fuse Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Colour code None Utilization category gG (cable protection/equipment protection) Mounting holes M8 Fuse construction type according to IEC 60269 A4 Current type AC/DC Rated current 80 A Rated voltage AC 660 V Centre-to-centre distance of connections 93.7 mm Rated voltage DC 460 V Breaking capacity 80 kA · Technical Data Sheet – Click to Download
